Same model may have multiple batches, images only for reference.

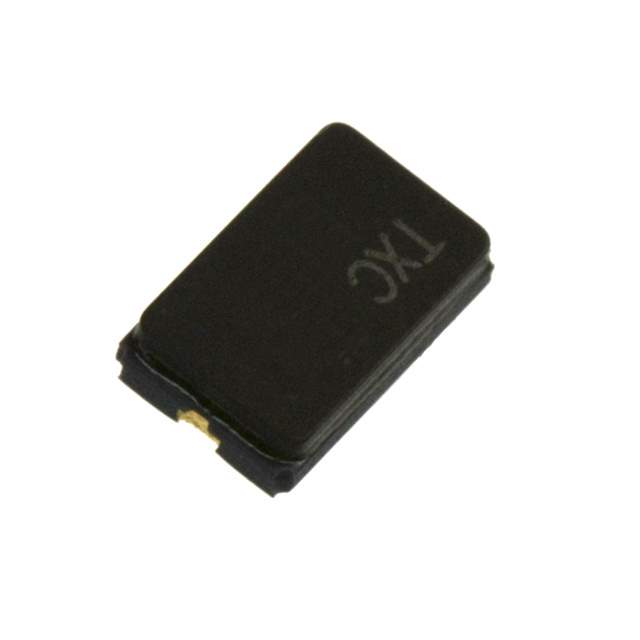

7A-12.288MAAJ-T Real Image
Same model may have multiple batches, images only for reference.

7A-12.288MAAJ-T

Part No 7A-12.288MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 12.2880MHZ 18PF SMD / 12.288 MHz ±30ppm Crystal 18pF 80 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 12.288 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1339421-7A-12.288MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 7A-12.288MAAJ-T CAD Model

Description

This MHz crystal is a high-quality component that is perfect for use in electronic devices that require precise frequency control.

  • Frequency: 12.288 MHz
  • ESR: 80 Ohms
  • Frequency Stability: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Package: Tape and Reel
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Mounting: Surface Mount
  • Temperature Range: -20°C to 70°C
  • Manufacturer: TXC Corporation
  • Standard Package: 1,000
