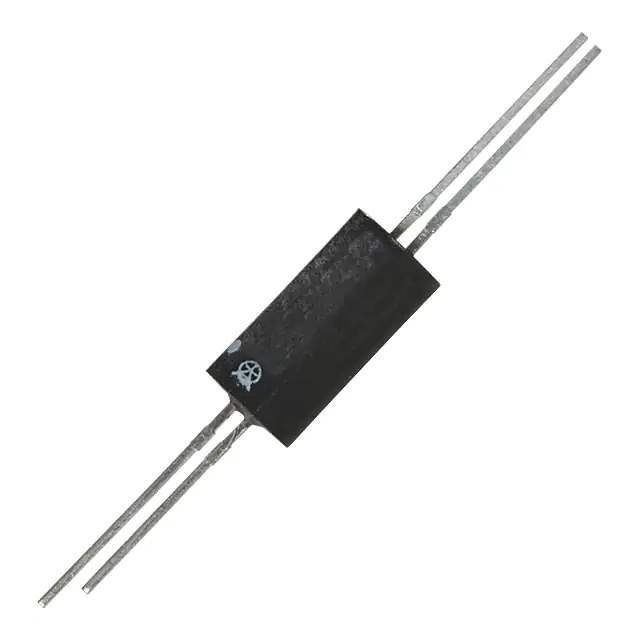

OPI1264B Real Image
Same model may have multiple batches, images only for reference.

OPI1264B

Part No OPI1264B
Manufacturer TT Electronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 15KV TRANS AXIAL
Datasheet
OPI1264B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr TT Electronics
Package Bulk
Product Status Active
Number of Channels 1
Voltage - Isolation 15000VDC
Current Transfer Ratio (Min) 50% @ 10mA
Current Transfer Ratio (Max) 125% @ 10mA
Input Type DC
Output Type Transistor
Voltage - Output (Max) 30V
Voltage - Forward (Vf) (Typ) 1.6V (Max)
Current - DC Forward (If) (Max) 40 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Axial - 4 Leads
Supplier Device Package Axial
Base Product Number OPI1264
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 847867-OPI1264B
Ultra Librarian 3D Model Ultra Librarian OPI1264B CAD Model

Description

The 847867-OPI1264B is a photovoltaic output optoisolator designed for isolator applications from TT Electronics.

  • Output Type: Transistor.
  • Input Type: DC.
  • Maximum Forward Current: 40mA.
  • Forward Voltage: 1.6V.
  • Voltage Isolation: 15,000VDC.
  • Current Transfer Ratio: 50% @ 10mA.
  • Maximum Current Transfer Ratio: 125% @ 10mA.
  • Output Voltage: 30V.
  • Vce Saturation: 400mV.
  • Mounting: Through-hole.
  • Operating Temperature Range: -40°C to 85°C.
  • Product Status: Active.
