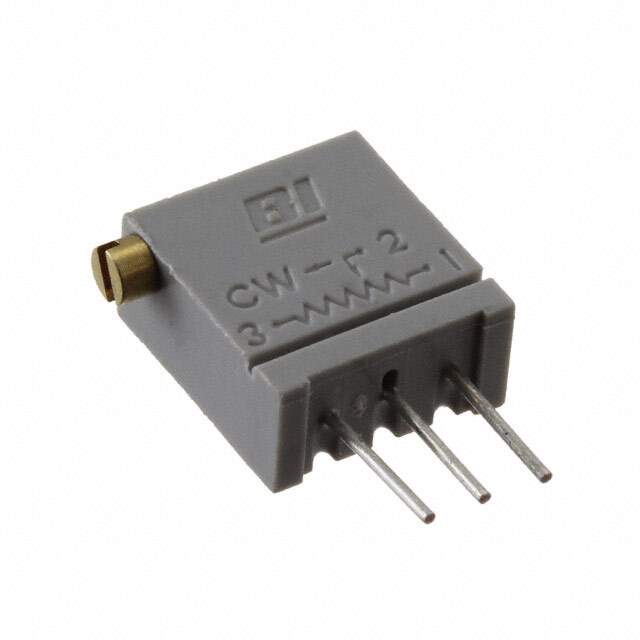

67XR100KLF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr TT Electronics/BI
Series 67
Package Bulk
Resistance 100 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 20
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm)
Base Product Number 67XR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 987-1495
Standard Package 50
Win Source Part Number 1132702-67XR100KLF
Ultra Librarian 3D Model Ultra Librarian 67XR100KLF CAD Model

Description

The 1132702-67XR100KLF is a high-quality potentiometer designed to meet the needs of various electronic applications.

  • Resistance: 100 kOhms
  • Power Rating: 0.5W
  • Resistive Material: Cermet
  • Adjustment Type: Side Adjustment with 20 Turns
  • Package: Bulk
  • Standard Package: 50
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Termination Style: PC Pins
  • Mounting Type: Through-Hole
  • Face Dimension: 0.375" x 0.195" (9.53mm x 4.95mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Base Product Number: 67XR
  • Other Names: 987-1495
