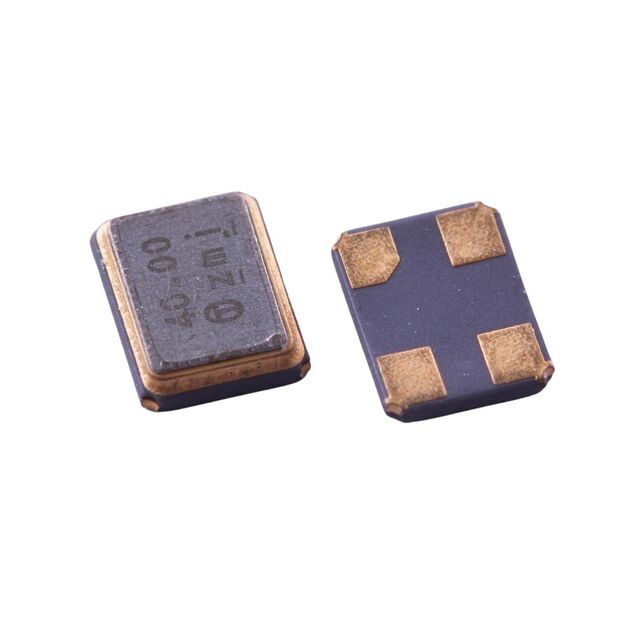

Same model may have multiple batches, images only for reference.
TZ0476D TST - Tamsan – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TZ0476D

Part No TZ0476D
Manufacturer TST - Tamsan
Catalog Oscillators
Description 24 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr TST
Packaging Reel - TR
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1481250-TZ0476D
Ultra Librarian 3D Model Ultra Librarian TZ0476D CAD Model
