Same model may have multiple batches, images only for reference.

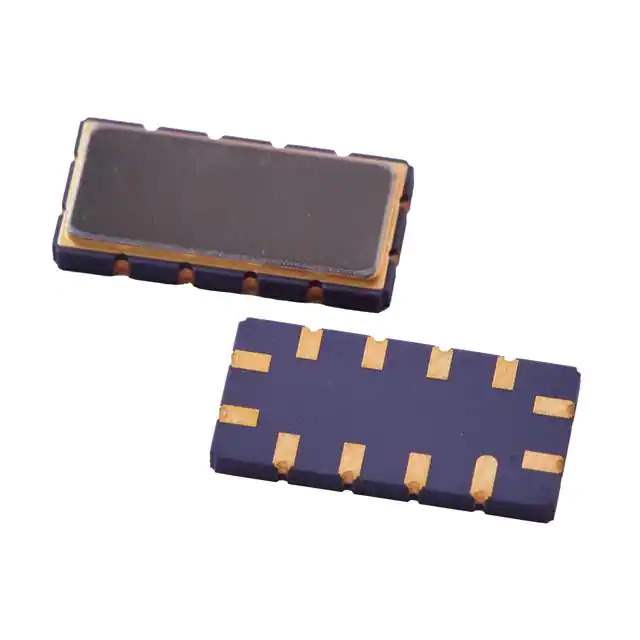

TB0194A Real Image
Same model may have multiple batches, images only for reference.

TB0194A

Part No TB0194A
Manufacturer TST - Tamsan
Catalog SAW Filters
Description SAW FILTER, SM13365-12PAD, 70.00
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr TST - Tamsan
Package Tape & Reel
Product Status Active
Frequency - Center 70MHz
Insertion Loss 11dB
Applications General Purpose
Mounting Type Surface Mount
Package / Case 12-SMD, No Lead
Height (Max) 0.073" (1.85mm)
Size / Dimension 0.524" L x 0.256" W (13.30mm x 6.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
Win Source Part Number 681493-TB0194A
Ultra Librarian 3D Model Ultra Librarian TB0194A CAD Model

Description

The 681493-TB0194A is a SAW filter designed for general purpose applications.

  • Frequency Center: 70MHz
  • Size: 0.524" L x 0.256" W (13.30mm x 6.50mm)
  • Height: 0.073" (1.85mm)
  • Mounting Type: Surface Mount
  • Insertion Loss: 11dB
  • Package: 12-SMD, no lead
  • Packaging: Tape and Reel
  • Manufacturer: TST - Tamsan
  • Status: Active
  • ECCN: EAR99
