CMT-8105 Triad Magnetics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

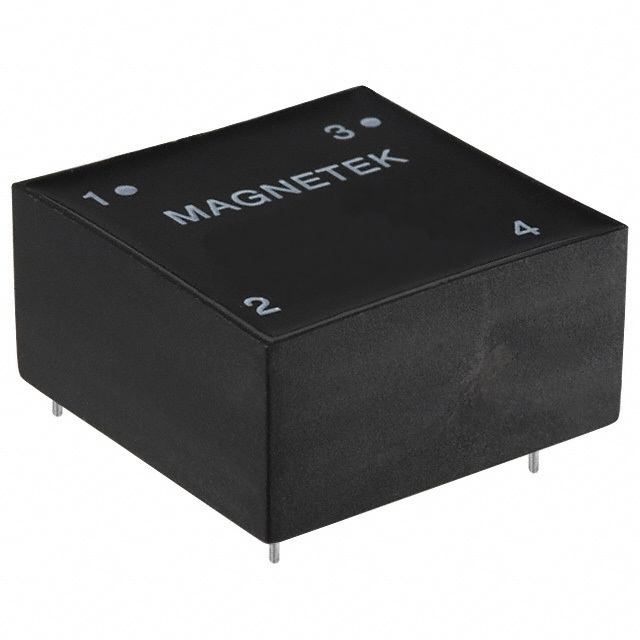

CMT-8105

Part No CMT-8105
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 7MH 2.8A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 7 mH @ 1 kHz
Current Rating (Max) 2.8A
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - AC 1500V (1.5kV)
Temperature Range - Operating -55°C ~ 105°C
Approval Agency CSA, IEC, UL, VDE
Mounting Type Through Hole
Size / Dimension 1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max) 1.200" (30.48mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530478-CMT-8105
Ultra Librarian 3D Model Ultra Librarian CMT-8105 CAD Model
