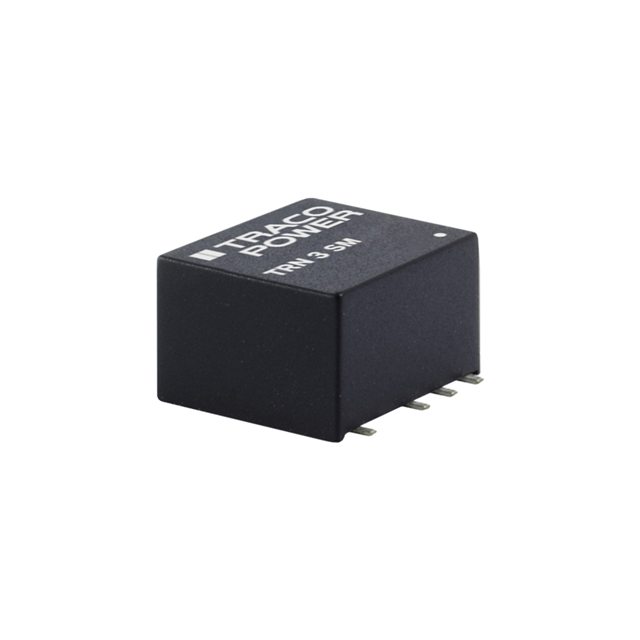

TRN 3-0515SM Real Image
Same model may have multiple batches, images only for reference.

TRN 3-0515SM

Part No TRN 3-0515SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 3W / Isolated Module DC DC Converter 1 Output 24V 125mA 4.5V - 13.2V Input
Datasheet
TRN 3-0515SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 13.2V
Voltage - Output 1 24V
Current - Output (Max) 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN3-0515SM,TRN 3-0515SM-ND
Standard Package 10
Win Source Part Number 1336350-TRN 3-0515SM
Ultra Librarian 3D Model Ultra Librarian TRN 3-0515SM CAD Model

Description

The Traco Power TRN 3-0515SM is an isolated module DC-DC converter designed to provide a 24V output voltage from a 4.5V to 13.2V input voltage range.

  • Output Voltage: 24V
  • Input Voltage Range: 4.5V to 13.2V
  • Maximum Output Current: 125mA
  • Power: Up to 3 watts
  • Protection: Overcurrent protection (SCP)
  • Efficiency: 80%
  • Size: 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm)
  • Mounting: Surface mounted
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 85°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
