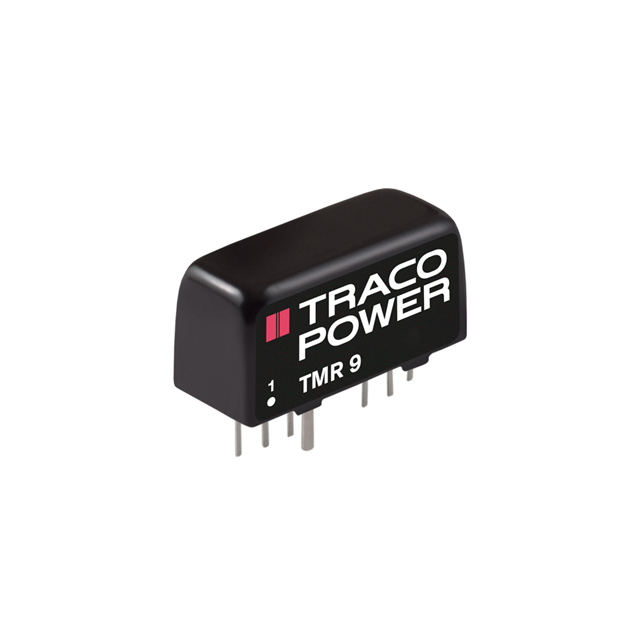

TMR 9-4821 Real Image
Same model may have multiple batches, images only for reference.

TMR 9-4821

Part No TMR 9-4821
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 8W / Isolated Module DC DC Converter 2 Output 5V -5V 800mA, 800mA 36V - 75V Input
Datasheet
TMR 9-4821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 800mA, 800mA
Power (Watts) 8 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 8-SIP Module, 6 Leads
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 9
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR9-4821,TMR 9-4821-ND
Standard Package 10
Win Source Part Number 1336320-TMR 9-4821
Ultra Librarian 3D Model Ultra Librarian TMR 9-4821 CAD Model

Description

The Traco Power TMR 9-4821 is an isolated module DC-DC converter.

  • Module Type: Isolated
  • Power: 8W
  • Efficiency: 86%
  • Outputs: Two
  • Maximum Output Current: 800mA each
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 5V and -5V respectively
  • Features: Remote on/off and SCP
  • Size: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
  • Package: 8-SIP module, 6 leads
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.6 kV
  • Operating Temperature: -40°C to 85°C (with derating)
  • ROHS: ROHS3 compliant
  • ECCN: EAR99
  • Standard Package: 10 modules
