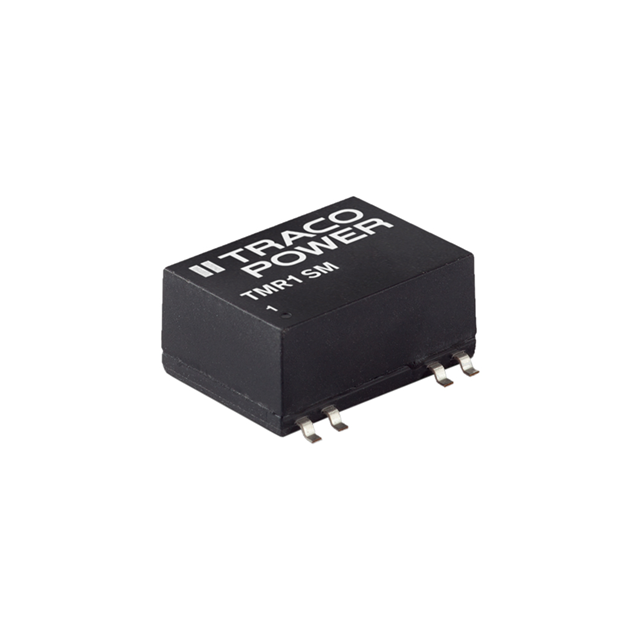

The Traco Power TMR 1-1212SM is an isolated module DC-DC converter with a power of 1W and a voltage isolation of 1.5kV.

• Size/Dimension: 0.74 inches (18.9mm) in length, 0.54 inches (13.7mm) in width, and 0.34 inches (8.7mm) in height
• Application: ITE (commercial) applications
• Package: Tube
• Features: Remote on/off, OCP, and SCP
• Mounting Style: Surface Mount
• Current Output (Max): 83mA
• Voltage Input (Min): 9V
• Voltage Input (Max): 18V
• Voltage Output 1: 12V
• Voltage Output 2: No
• Voltage Output 4: No
• Efficiency: 79%
• Category: Power supply - board mount>DC DC converter product
• Standard Package: 10
• MSL Level: 2 (1 year)
• REACH: Unaffected
• HTSUS Code: 8504.40.9580
• Other Part Numbers: TMR1-1212SM and TMR 1-1212SM-ND
