Same model may have multiple batches, images only for reference.

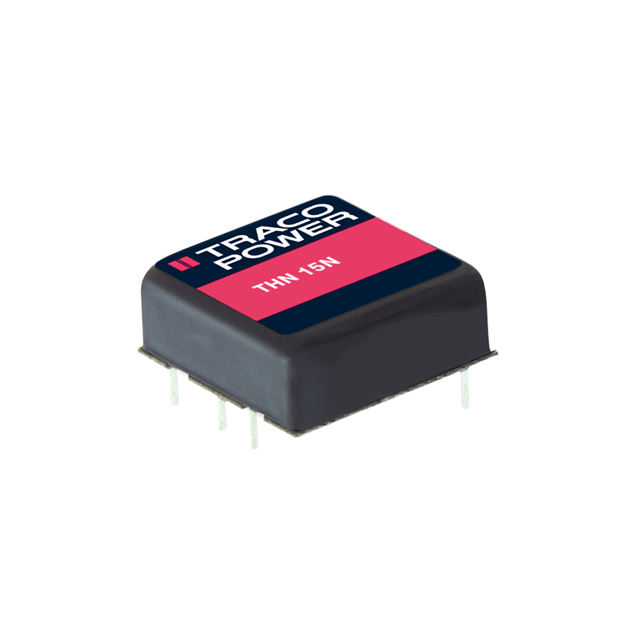

THN 15-4825N Real Image
Same model may have multiple batches, images only for reference.

THN 15-4825N

Part No THN 15-4825N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 15W / Isolated Module DC DC Converter 2 Output 24V -24V 315mA, 315mA 36V - 75V Input
Datasheet
THN 15-4825N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Current - Output (Max) 315mA, 315mA
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3296,THN15-4825NINACTIVE,THN15-4825N-ND,THN15-4825N
Standard Package 10
Win Source Part Number 1336017-THN 15-4825N
Ultra Librarian 3D Model Ultra Librarian THN 15-4825N CAD Model

Description

The Traco Power THN 15-4825N is a DC-DC converter module that provides 15W of power with 89% efficiency.

  • Outputs: Two isolated outputs with 24V and -24V voltage levels
  • Features: Remote on/off, OCP, OVP, and SCP protection
  • Voltage Isolation: 1.6kV
  • Operating Temperature Range: -40°C to 105°C with derating
  • Application: ITE (Commercial)
  • Package: 6-DIP module
  • Mounting: Through-hole
  • Standard Package: 10
  • ROHS3 Compliant: Yes
