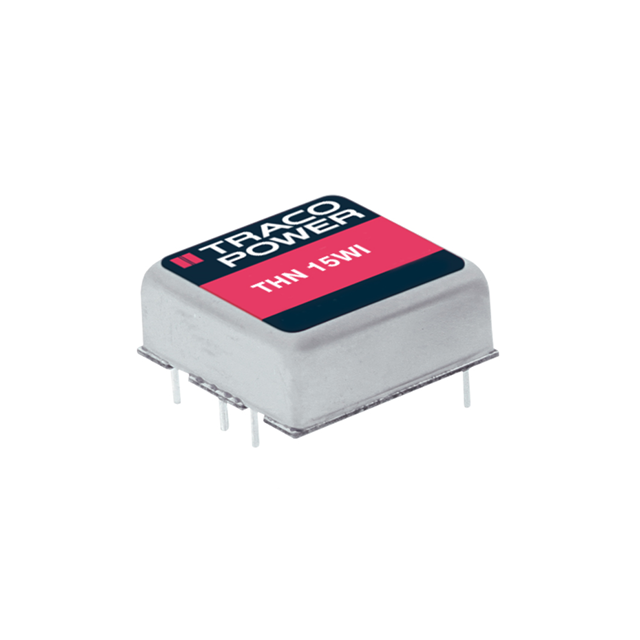

Same model may have multiple batches, images only for reference.

THN 15-4822WI

Name: THN 15-4822WI
Brand: Traco Power
SKU: 1336035
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 15-4822WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 18V - 75V Input
Datasheet	THN 15-4822WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	625mA, 625mA
Power (Watts)	15 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	86%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency	CB, cURus
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN15-4822WI,THN 15-4822WI-ND
Standard Package	10
Win Source Part Number	1336035-THN 15-4822WI
Ultra Librarian 3D Model	Ultra Librarian THN 15-4822WI CAD Model

Alternative Products

Description

This Traco Power electronic component is a DC DC converter that comes in a tube packaging.

Type: Isolated module
Features: Remote On/Off, OVP, SCP, and UVLO
Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Application: ITE (Commercial)
Standard Package: 10
Mounting: Through Hole
Power: 15W
Voltage Isolation: 1.6 kV
Number of Outputs: 2
Maximum Output Current: 625mA, 625mA
Input Voltage Range: 18V to 75V
Output Voltage: 12V and -12V
Efficiency: 86%
Operating Temperature Range: -40°C ~ 85°C (With Derating)
Case/Package: 6-DIP module
ECCN: EAR99
