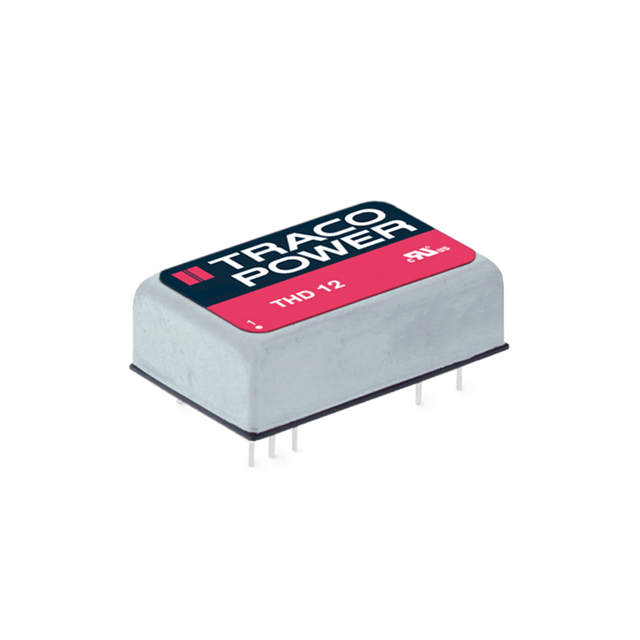

Same model may have multiple batches, images only for reference.

THD 12-1222

Name: THD 12-1222
Brand: Traco Power
SKU: 1335894
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THD 12-1222
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 12W / Isolated Module DC DC Converter 2 Output 12V -12V 500mA, 500mA 9V - 18V Input
Datasheet	THD 12-1222 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	500mA, 500mA
Power (Watts)	12 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	THD 12
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1604
Standard Package	10
Win Source Part Number	1335894-THD 12-1222
Ultra Librarian 3D Model	Ultra Librarian THD 12-1222 CAD Model

Alternative Products

Description

The THD 12-1222 is an isolated module DC-DC converter manufactured by Traco Power.

Features: Remote On/Off, OVP, SCP, UVLO
Power Output: 12W
Number of Outputs: 2
Maximum Current Output: 500mA, 500mA
Input Voltage: 9V to 18V
Output Voltage 1: 12V
Output Voltage 2: -12V
Application: ITE (Commercial)
Package: 24-DIP module with 8 leads
ROHS3 Compliant: True
Efficiency: 87%
