Same model may have multiple batches, images only for reference.

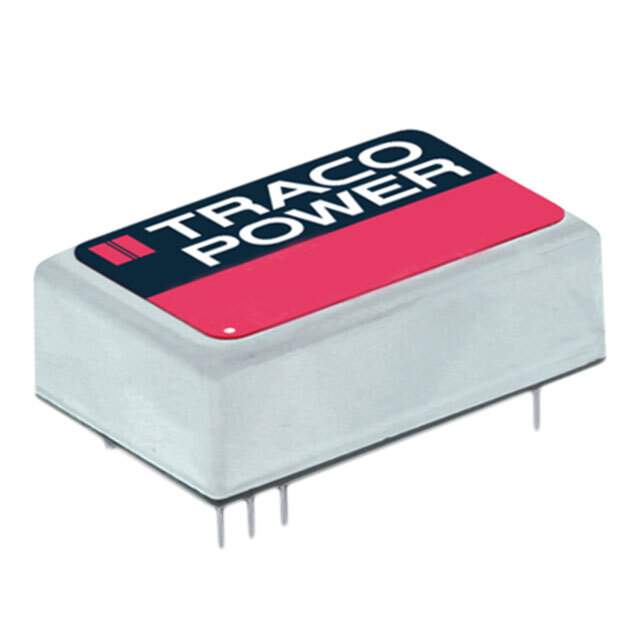

THD 10-2422N Real Image
Same model may have multiple batches, images only for reference.

THD 10-2422N

Part No THD 10-2422N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 36V Input
Datasheet
THD 10-2422N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 416mA, 416mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number THD 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1602
Standard Package 10
Win Source Part Number 1335906-THD 10-2422N
Ultra Librarian 3D Model Ultra Librarian THD 10-2422N CAD Model

Description

The Traco Power THD 10-2422N is a DC-DC converter module with two outputs.

  • Power Output: 10 W
  • Application: ITE
  • Input Voltage: 18V to 36V
  • Output Voltages: 12V and -12V
  • Voltage Isolation: 1.5 kV
  • Features: Remote on/off, OCP and SCP
  • Package: 24-DIP module with 9 leads
  • Efficiency: 88%
  • Temperature Range: -40°C to 85°C with derating
  • ROHS3 Compliant: True
  • REACH: Unaffected
