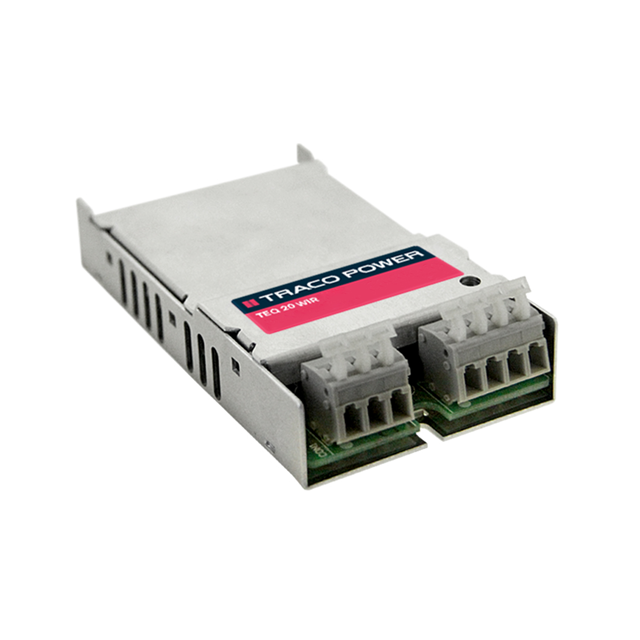

TEQ 20-7215WIR Real Image
Same model may have multiple batches, images only for reference.

TEQ 20-7215WIR

Part No TEQ 20-7215WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 24V 20W / Enclosed DC DC Converter 1 Output 24V 833mA 160V Input
Datasheet
TEQ 20-7215WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr Traco Power
Series TEQ 20WIR (20W)
Package Box
Type Enclosed
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Number of Outputs 1
Voltage - Output 1 24V
Current - Output (Max) 833mA
Power (Watts) 20W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial), Railway
Efficiency 87%
Temperature Range - Operating -40°C ~ 93°C (With Derating)
Mounting Type Chassis Mount
Dimension 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm)
Base Product Number TEQ 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-1133
Standard Package 2
Win Source Part Number 1086533-TEQ 20-7215WIR
Ultra Librarian 3D Model Ultra Librarian TEQ 20-7215WIR CAD Model

Description

This electronic component is a TEQ 20WIR (20W) enclosed DC DC converter product manufactured by Traco Power.

  • Win Source Part Number: 1086533-TEQ 20-7215WIR
  • Designed for: ITE (commercial) and railway applications
  • Standard Package: 2
  • Power Output: 20W
  • Voltage Isolation: 2.25 kV
  • Outputs: One
  • Maximum Current Output: 833mA
  • Input Voltage Range: 43V ~ 160V
  • Output Voltage: 24V
  • Efficiency: 87%
  • Mounting Type: Chassis mount
  • Operating Temperature Range: -40°C ~ 93°C (with derating)
  • Dimensions: 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm)
  • Alternative Parts (cross-reference): TEQ 20-7215WIRTEQ20-7215WIR
  • MSL Level: Not applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8504.40.9580
  • Base Product Number: TEQ 20
  • Approval Agency: None
