Same model may have multiple batches, images only for reference.

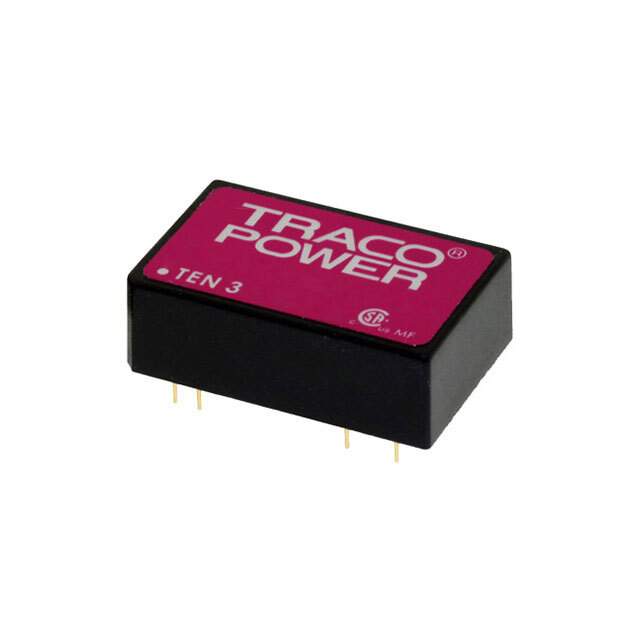

TEN 3-4822WI Real Image
Same model may have multiple batches, images only for reference.

TEN 3-4822WI

Part No TEN 3-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 75V Input
Datasheet
TEN 3-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Approval Agency CB, cCSAus
Base Product Number TEN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2170
Standard Package 10
Win Source Part Number 1335750-TEN 3-4822WI
Ultra Librarian 3D Model Ultra Librarian TEN 3-4822WI CAD Model

Description

The Traco Power TEN 3-4822WI is an isolated module DC DC converter that comes with a size dimension of 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm).

  • Size Dimension: 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
  • Application: ITE (Commercial)
  • Power Rating: 3 W
  • Voltage Isolation: 1.5 kV
  • Features: SCP
  • Number of Outputs: 2
  • Current Output: 125mA, 125mA
  • Input Voltage Range: 18V to 75V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 82%
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Mounting: Through Hole
  • Package: 24-DIP module, 8 leads
  • Approvals: CB, cCSAus
  • RoHS Compliance: ROHS3 compliant
