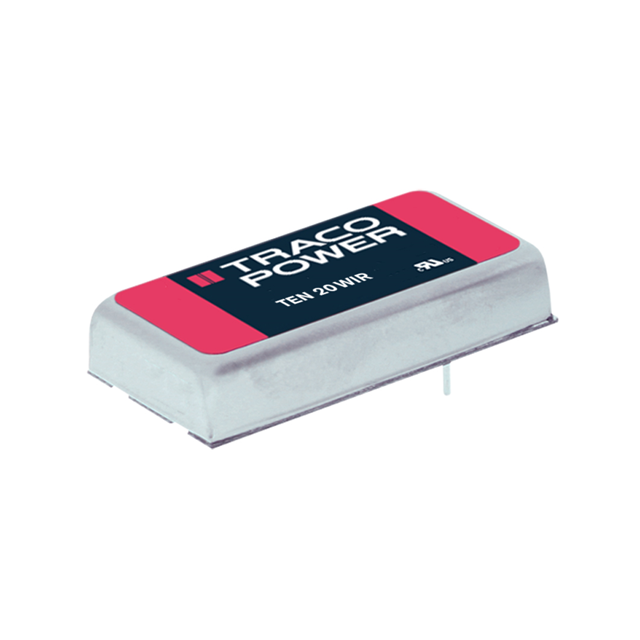

Same model may have multiple batches, images only for reference.

TEN 20-2423WIR

Name: TEN 20-2423WIR
Brand: Traco Power
SKU: 1335655
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 20-2423WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 9V - 36V Input
Datasheet	TEN 20-2423WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	667mA, 667mA
Power (Watts)	20 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2132
Standard Package	10
Win Source Part Number	1335655-TEN 20-2423WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 20-2423WIR CAD Model

Alternative Products

Description

The TEN 20-2423WIR is a DC/DC Converter Module from Traco Power.

Type: Isolated module
Power Output: 20 watts
Features: Remote On/Off, OCP, OVP, and SCP
Package: 6-DIP
Voltage Isolation: 2.25 kV
Number of Outputs: 2
Maximum Output Current: 667mA each
Input Voltage: 9V to 36V
Voltage Output 1: 15V
Voltage Output 2: -15V
Efficiency: 89%
Operating Temperature: -40°C to 85°C with derating
Applications: ITE (Commercial) and Railway
