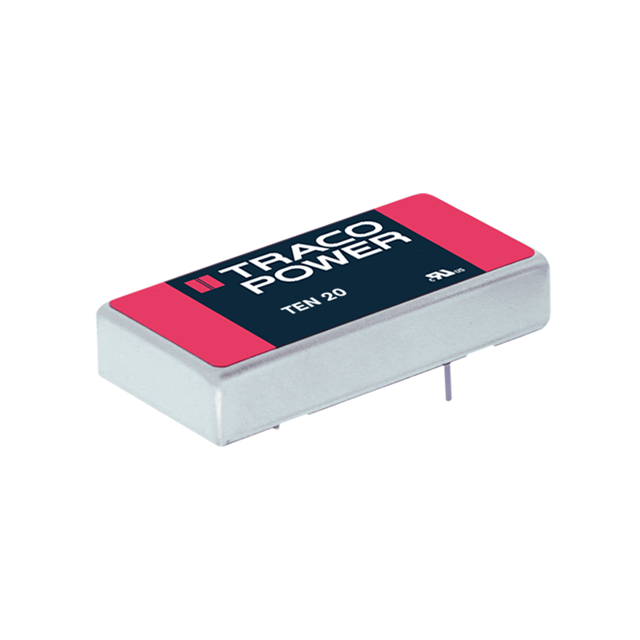

Same model may have multiple batches, images only for reference.

TEN 20-1222

Name: TEN 20-1222
Brand: Traco Power
SKU: 1335639
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TEN 20-1222
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 9V - 18V Input
Datasheet	TEN 20-1222 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	835mA, 835mA
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN20-1222,TEN20-1222-ND,TEN 20-1222-ND,1951-2972
Standard Package	10
Win Source Part Number	1335639-TEN 20-1222
Ultra Librarian 3D Model	Ultra Librarian TEN 20-1222 CAD Model

Alternative Products

Description

The Traco Power 1335639-TEN 20-1222 is a DC-DC converter with a power rating of 20W.

Packaging: tube
Mounting: through hole
Voltage Input Range: 9V to 18V
Temperature Range: -40°C to 85°C
Efficiency: 88%
Equipped with: SCP features
