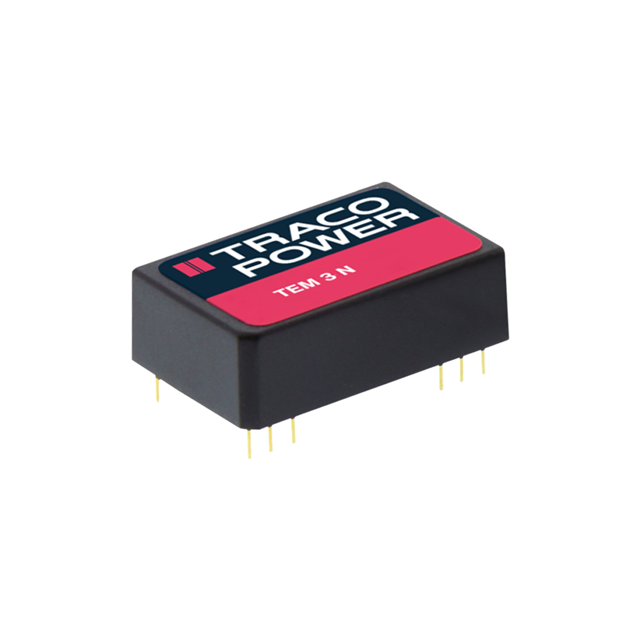

Same model may have multiple batches, images only for reference.

TEM 3-1223N

Name: TEM 3-1223N
Brand: Traco Power
SKU: 1335618
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEM 3-1223N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 10.8V - 13.2V Input
Datasheet	TEM 3-1223N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	82%
Mounting	Through Hole
Case / Package	24-DIP Module, 12 Leads
Size / Dimension	1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Base Product Number	TEM 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEM3-1223N,TEM 3-1223N-ND
Standard Package	10
Win Source Part Number	1335618-TEM 3-1223N
Ultra Librarian 3D Model	Ultra Librarian TEM 3-1223N CAD Model

Alternative Products

Description

The TEM 3-1223N is an isolated module DC-DC converter from Traco Power.

Power: 3W
Size: 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Applications: ITE (Commercial)
Standard Package: 10
Voltage-Isolation: 1.5 kV
Number of Outputs: 2
Current-Output (Max): 100mA, 100mA
Voltage-Input (Min): 10.8V
Voltage-Input (Max): 13.2V
Voltage-Output 1: 15V
Voltage-Output 2: -15V
Efficiency: 82%
Temperature Range: -40°C to 85°C (With Derating)
