Same model may have multiple batches, images only for reference.

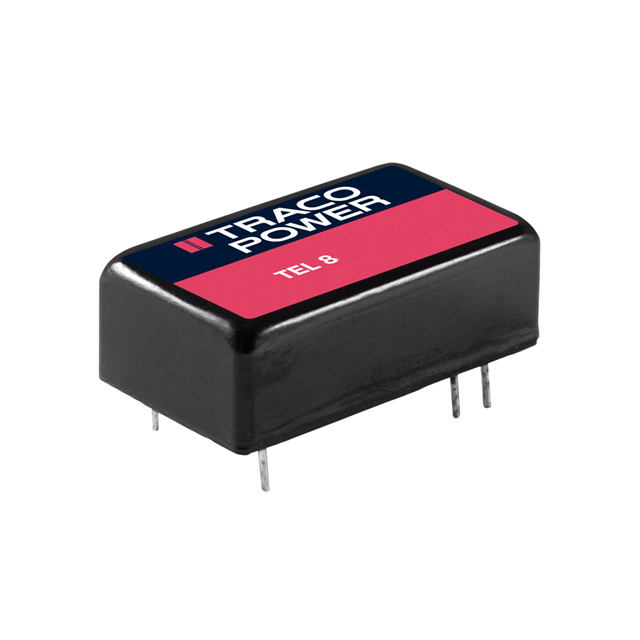

TEL 8-2422 Real Image
Same model may have multiple batches, images only for reference.

TEL 8-2422

Part No TEL 8-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 18V - 36V Input
Datasheet
TEL 8-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 335mA, 335mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C
Efficiency 85%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number TEL 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEL8-2422,TEL 8-2422-ND
Standard Package 10
Win Source Part Number 1335600-TEL 8-2422
Ultra Librarian 3D Model Ultra Librarian TEL 8-2422 CAD Model

Description

The Traco Power electronic component with Win Source Part Number 1335600-TEL 8-2422 is a power supply board mount DC DC converter that comes in a 16-DIP module with 6 leads.

  • Features: SCP
  • Outputs: 2
  • Power: 8W
  • Voltage Isolation: 1.5 kV
  • Efficiency: 85 percent
  • Operating Temperature Range: -40°C to 80°C
  • Applications: ITE (Commercial)
  • Type: Isolated module
  • Size: 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
  • Packaging: Tube
  • Voltage Input Range: 18V to 36V
  • Voltage Outputs: 12V and -12V
  • Current Output: 335mA
  • Temperature Coefficient: ±40ppm/°C
