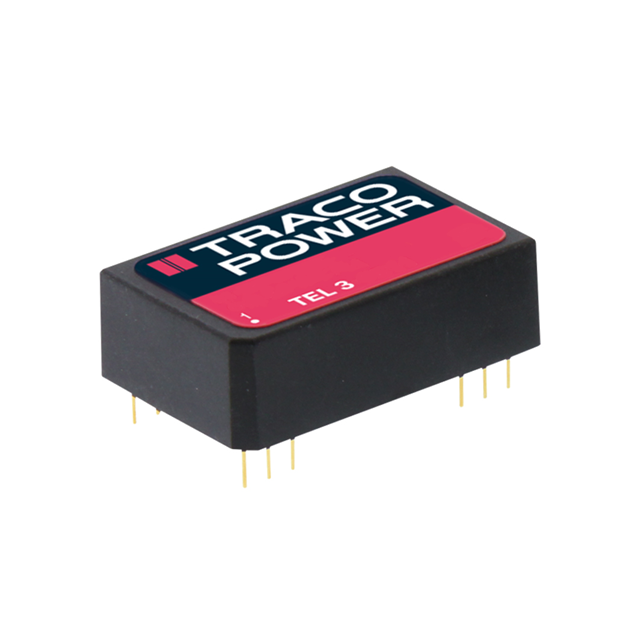

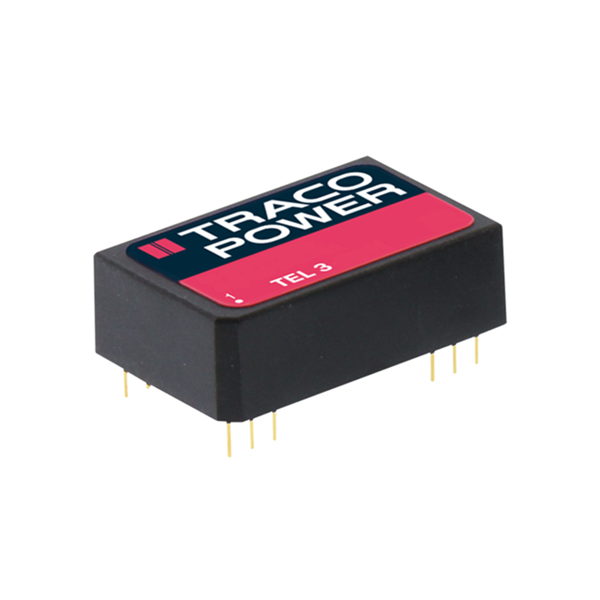

Same model may have multiple batches, images only for reference.

TEL 3-4822

Name: TEL 3-4822
Brand: Traco Power
SKU: 1335599
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEL 3-4822
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet	TEL 3-4822 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	81%
Mounting	Through Hole
Case / Package	24-DIP Module, 13 Leads
Size / Dimension	1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Base Product Number	TEL 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1529
Standard Package	10
Win Source Part Number	1335599-TEL 3-4822
Ultra Librarian 3D Model	Ultra Librarian TEL 3-4822 CAD Model

Alternative Products

Description

The Traco Power Isolated Module is a high-quality power supply designed for use in ITE (Commercial) applications.

Power Output: 3 W
Voltage Isolation: 1.5 kV
Protection: SCP
Size: 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Package: 24-DIP Module, 13 Leads
Mounting: Through hole
Outputs: Dual
Maximum Output Current: 125mA for each output
Input Voltage Range: 36V to 75V
Output Voltage: 12V and -12V respectively
Efficiency: 81%
Operating Temperature: -40°C ~ 85°C (With Derating)
Compliance: ROHS3 compliant
ECCN: EAR99
