Same model may have multiple batches, images only for reference.

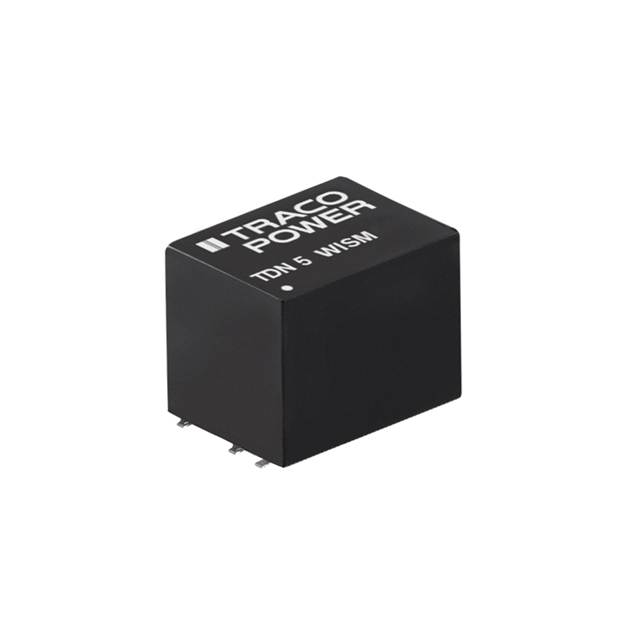

TDN 5-2412WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 5-2412WISM

Part No TDN 5-2412WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 5W / Isolated Module DC DC Converter 1 Output 12V 420mA 9V - 36V Input
Datasheet
TDN 5-2412WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 420mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 83%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency UL
Standard Number 60950-1; 62368-1
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 5-2412WISM-ND,TDN5-2412WISM
Standard Package 10
Win Source Part Number 1335465-TDN 5-2412WISM
Ultra Librarian 3D Model Ultra Librarian TDN 5-2412WISM CAD Model

Description

This electronic component is a DC DC converter manufactured by Traco Power, with a Win Source Part Number of 1335465-TDN 5-2412WISM.

  • Type: Isolated module
  • Power: 5 W
  • Voltage Isolation: 1.6 kV
  • Current Output: 420mA
  • Voltage Input: 9V to 36V
  • Output Voltage: 12V
  • Efficiency: 83%
  • Temperature Range: -40°C ~ 75°C (With Derating)
  • Standard Package: 10
  • ROHS3 Compliant: Yes
  • MSL Level: 2 (1 Year)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8504.40.9580
  • Other part numbers: TDN 5-2412WISM-ND and TDN5-2412WISM
