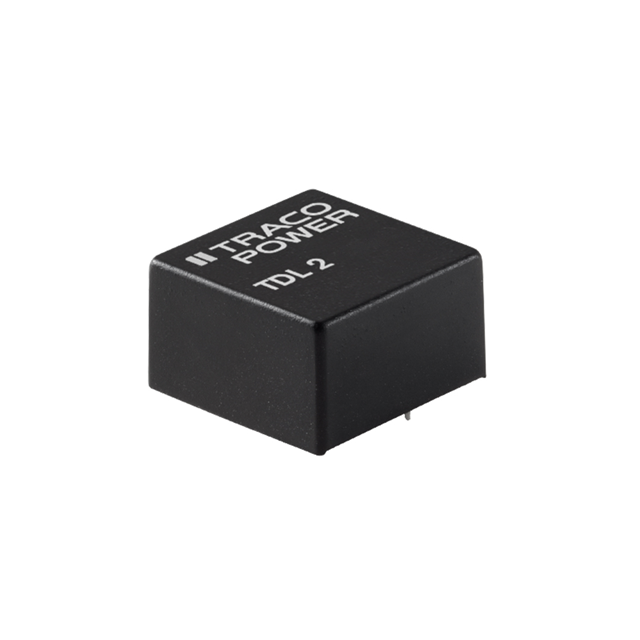

Same model may have multiple batches, images only for reference.

TDL 2-4822

Name: TDL 2-4822
Brand: Traco Power
SKU: 1335360
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TDL 2-4822
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 36V - 75V Input
Datasheet	TDL 2-4822 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	83mA, 83mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	84%
Mounting	Through Hole
Case / Package	7-DIP Module, 5 Leads
Size / Dimension	0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number	TDL 2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-TDL 2-4822,TDL2-4822,TDL 2-4822-ND
Standard Package	10
Win Source Part Number	1335360-TDL 2-4822
Ultra Librarian 3D Model	Ultra Librarian TDL 2-4822 CAD Model

Alternative Products

Description

The Traco Power TDL 2-4822 is a DC-DC converter that is widely used in various commercial applications, including information technology equipment.

Type: Isolated module
Features: SCP protection
Size: 0.55 inches in length, 0.55 inches in width, and 0.31 inches in height
Outputs: Two
Maximum Output Current: 83mA for each output
Input Voltage Range: 36V to 75V
Output Voltage: 12V and -12V
Efficiency: 84 percent
Package: 7-DIP module, 5 leads
Supply: limited supply
