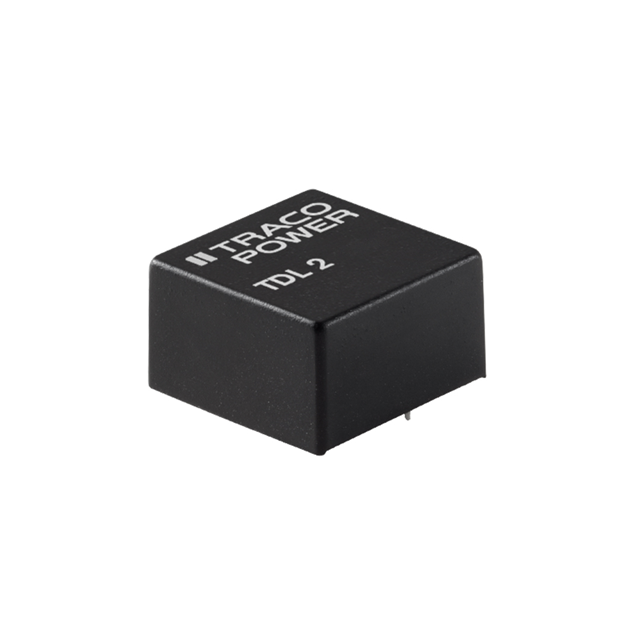

Same model may have multiple batches, images only for reference.

TDL 2-0513

Name: TDL 2-0513
Brand: Traco Power
SKU: 1335343
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TDL 2-0513
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 134mA 4.5V - 10V Input
Datasheet	TDL 2-0513 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	10V
Voltage - Output 1	15V
Current - Output (Max)	134mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	87%
Mounting	Through Hole
Case / Package	7-DIP Module, 4 Leads
Size / Dimension	0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number	TDL 2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDL 2-0513-ND,TDL2-0513
Standard Package	10
Win Source Part Number	1335343-TDL 2-0513
Ultra Librarian 3D Model	Ultra Librarian TDL 2-0513 CAD Model

Alternative Products

Description

The Traco Power TDL 2-0513 is an isolated module DC-DC converter that comes with a size of 0.55" L x 0.55" W x 0.31" H, making it suitable for ITE (Commercial) applications.

Power (Max): 2W
Output Current (Max): 134mA
Input Voltage (Max): 10V
Efficiency: 87%
Case/Package: 7-DIP module, 4 leads
Voltage Isolation: 1.5kV
Temperature Range: -40°C to 70°C
ROHS Compliance: ROHS3
Status: Not for new designs
