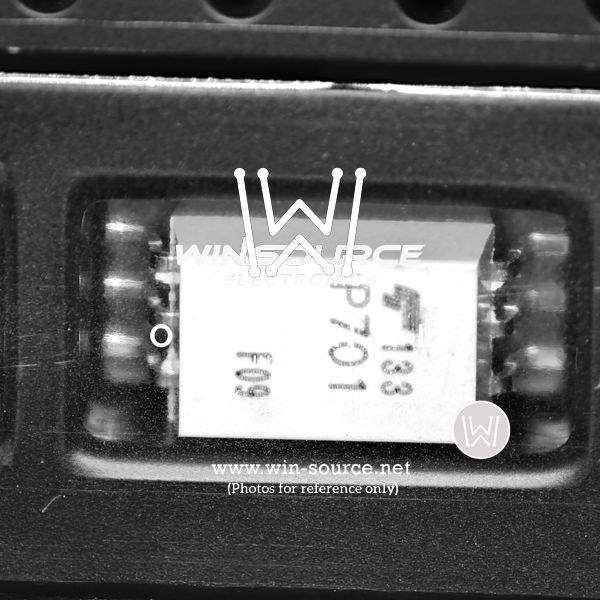

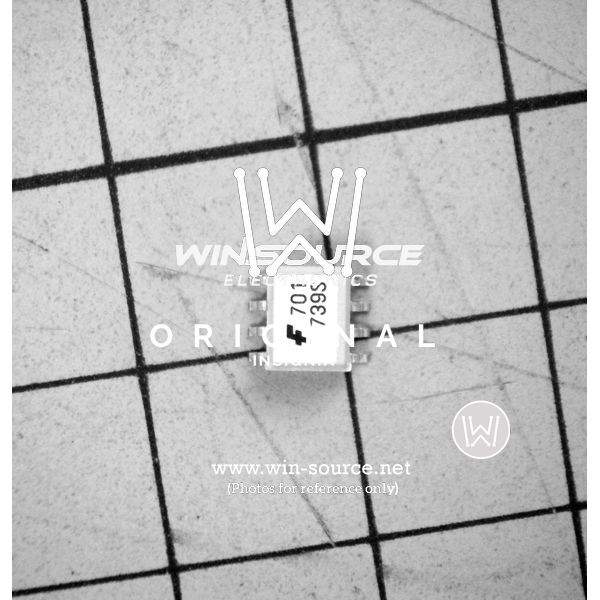

TLP701 Toshiba Semiconductor and Storage TLP701 real image7482 TLP701 Real Image1 TLP701 Real Image2
Same model may have multiple batches, images only for reference.
TLP701 Toshiba Semiconductor and Storage TLP701 real image7482 TLP701 Real Image1 TLP701 Real Image2
TLP701 Toshiba Semiconductor and Storage TLP701 real image7482 TLP701 Real Image1 TLP701 Real Image2
Same model may have multiple batches, images only for reference.

TLP701

Part No TLP701
Manufacturer Toshiba Semiconductor and Storage
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 6SDIP GW
Datasheet
TLP701 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Propagation Delay tpLH / tpHL (Max) 700ns, 700ns
Rise and Fall Time 50ns, 50ns
Current - Output High, Low 400mA, 400mA
Current - Peak Output 600mA
Forward Voltage 1.55V
Continuous forward current- Max 20mA
Supply Voltage - Operating 10 V to 30 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SDIP Gull Wing
Approvals cUL, UL
Win Source Part Number 092595-TLP701
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP701 CAD Model

Description

It has a sufficient supply and demand status.

  • Product: TLP701 optical coupling technology
  • Current Output High: 400mA
  • Current Output Low: 400mA
  • Isolation Voltage: 5000Vrms
  • Common Mode Transient Immunity: 10kV/μs
  • Category: isolators
  • Temperature Range: -40°C to 100°C
  • Supply Voltage Operating Range: 10V to 30V
  • Pulse Width Distortion: not specified
  • Manufacturer: Toshiba Semiconductor and Storage
  • Win Source Part Number: 092595-TLP701
