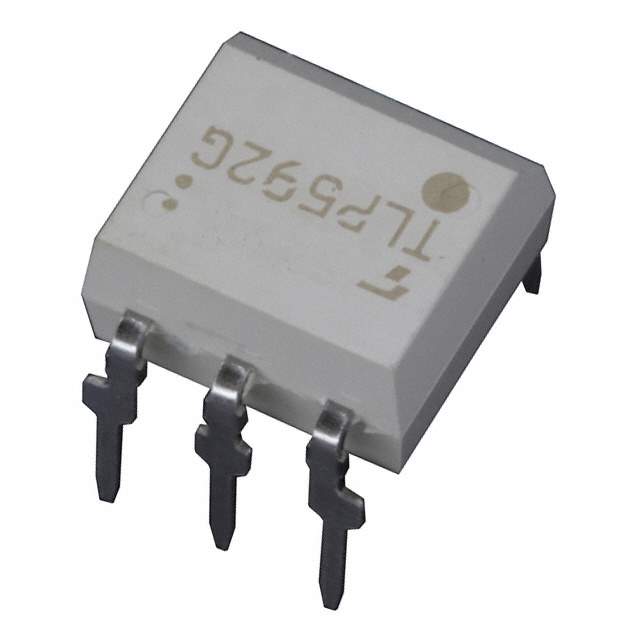

The TLP592G is a high-speed, low input current, logic gate photocoupler from Toshiba. It consists of a GaAlAs light-emitting diode (LED) optically coupled to a high-gain, high-speed photodetector IC chip. This photocoupler is designed for high-density mounting and offers excellent performance in various isolation and digital interface applications.

Applications:

• High-Speed Logic Circuits: Used for isolating and interfacing high-speed digital signals.
• Microprocessor System Interfaces: Provides electrical isolation between microprocessor systems and external devices.
• Programmable Logic Controllers (PLCs): Isolates input/output modules in PLCs.
• Inverter Control: Used in inverter circuits for isolating control signals.
• Switching Power Supplies: Provides feedback isolation in switching power supplies.

Features:

• High-Speed Operation: Offers a typical propagation delay time of 20 ns.
• Low Input Current: Requires a low input current of 5 mA (max).
• High Common-Mode Transient Immunity: Guarantees a common-mode transient immunity of ±15 kV/μs (min).
• Open Collector Output: Features an open collector output for design flexibility.
• Safety Standards Compliance: Meets international safety standards such as UL, cUL, and VDE.
• Operating Temperature Range: Wide operating temperature range from -40°C to 100°C.

Benefits:

• Enhanced System Reliability: Provides galvanic isolation, protecting sensitive circuits from voltage spikes and noise.
• Improved Noise Immunity: High common-mode transient immunity ensures reliable data transmission in noisy environments.
• Simplified Circuit Design: Low input current requirements allow for direct interfacing with low-power logic circuits.
• Space-Saving Design: Compact package suitable for high-density board layouts.
• Safety Compliance: Meets stringent safety standards, ensuring safe operation in various applications.

Additional Details:

The TLP592G comes in a small outline package (SOP) and is designed for surface mounting. It operates with a supply voltage of 3.3 V to 5 V, making it compatible with various logic levels. The device provides a minimum isolation voltage of 3750 Vrms, ensuring robust electrical isolation. Its high-speed performance and excellent noise immunity make it suitable for demanding industrial and communication applications. The open collector output allows designers to tailor the output characteristics to specific requirements using external pull-up resistors.
