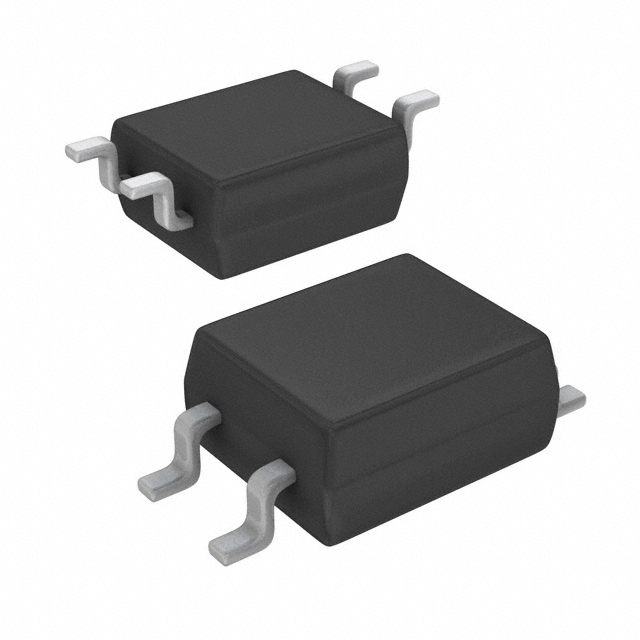

The TLP181(GB-TPL) is a Photorelay manufactured by Toshiba Semiconductor and Storage. It is designed to provide galvanic isolation and efficient switching. It utilizes a GaAlAs infrared light-emitting diode (LED) at the input, optically coupled to a MOSFET at the output. This configuration allows the output circuit to be controlled without a direct electrical connection, thus ensuring high isolation voltage and noise immunity.

Applications

• Industrial Control Systems: Employed for isolated control of digital input/output (I/O) modules in PLCs (Programmable Logic Controllers).
• Instrumentation: Provides isolation in measurement instruments to prevent ground loops and ensure accurate readings.
• Telecommunications: Used in telecommunications equipment for isolating subscriber lines and protecting against voltage surges.
• Medical Equipment: Ensures patient safety by providing isolation in various medical devices.
• Solid State Relays (SSRs): Can serve as a solid-state relay for switching AC or DC loads, providing a longer lifespan and faster switching compared to electromechanical relays.

Features

• High Isolation Voltage: Provides high isolation voltage, enhancing safety in high-voltage applications.
• Low On-Resistance: Features low on-resistance, minimizing voltage drop and power dissipation.
• Fast Switching Speed: Offers fast turn-on and turn-off times, allowing for high-frequency switching.
• Surface Mount Package: Compact surface-mount package saves board space and simplifies assembly.
• RoHS Compliance: Complies with Restriction of Hazardous Substances (RoHS) directives, making it environmentally friendly.

Benefits

• Enhanced Safety: Offers electrical isolation, enhancing safety for both users and equipment, particularly in high-voltage applications.
• Reduced Power Consumption: Consumes minimal power, contributing to overall system efficiency.
• Improved System Reliability: Provides a long operational lifespan and high reliability, reducing the need for frequent replacements.
• Simplified Design: Simplifies circuit design with its easy-to-use interface and compact form factor.
• Improved Performance: Delivers rapid and precise switching, improving the overall performance of the system.

The TLP181(GB-TPL) is designed for surface mounting, which allows for automated assembly. Its robust design and high-performance qualities make it a suitable choice for demanding applications where isolation, reliability, and speed are critical factors.
