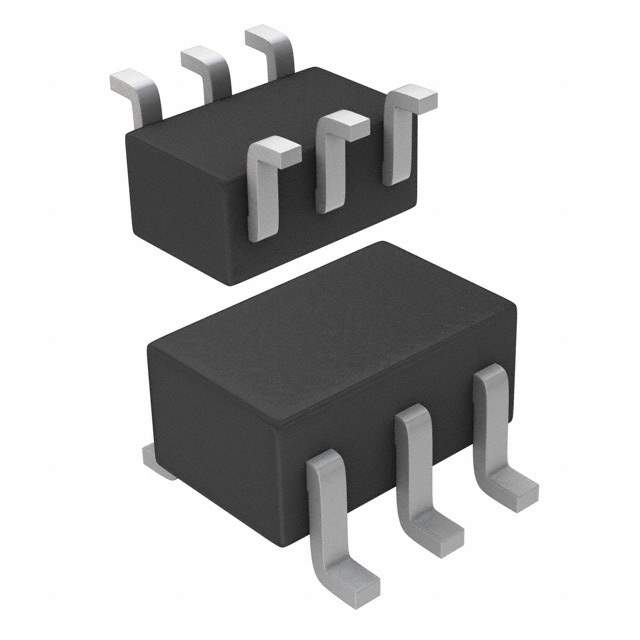

The HN2D01FU is a diode array manufactured by Toshiba Semiconductor and Storage. It typically consists of two diodes in a single package, designed for rectification and protection applications in electronic circuits. This array offers a compact and efficient solution for implementing various diode functions.

Applications

• Voltage clamping
• Reverse polarity protection
• Small signal rectification
• Switching circuits
• Protection of I/O ports

Features

• Dual diode array
• Low forward voltage drop
• High-speed switching
• Surface Mount Device (SMD)
• Compact package

Benefits

• Space Saving: The dual diode configuration in a single package reduces the component count and board space required.
• Efficient Rectification: The low forward voltage drop minimizes power loss and improves efficiency in rectification applications.
• Fast Switching: Enables high-speed operation in switching circuits and signal processing applications.
• Easy Assembly: The SMD package simplifies the assembly process and is compatible with automated manufacturing techniques.
• Enhanced Protection: Provides reliable protection against voltage spikes and reverse polarity conditions, enhancing the robustness of electronic circuits.

Additional Details

The HN2D01FU is characterized by its maximum forward current (IF), peak reverse voltage (VRRM), and forward voltage drop (VF). The specific values depend on the datasheet version and should be consulted for accurate design. It's crucial to consider the thermal characteristics of the device, especially in applications with high forward currents. Proper thermal management can ensure reliable operation and prevent device failure.

The compact SMD package is suitable for high-density PCB layouts, allowing for miniaturization of electronic devices. The dual diode configuration can be used in various configurations, such as common anode, common cathode, or series connection, providing flexibility in circuit design.

Care should be taken to avoid exceeding the maximum voltage and current ratings to prevent device failure. Furthermore, proper ESD precautions should be observed during handling and assembly to protect the device from electrostatic discharge damage.

The HN2D01FU diode array is a versatile component suitable for a wide range of electronic applications, providing efficient and reliable performance in a compact package.
