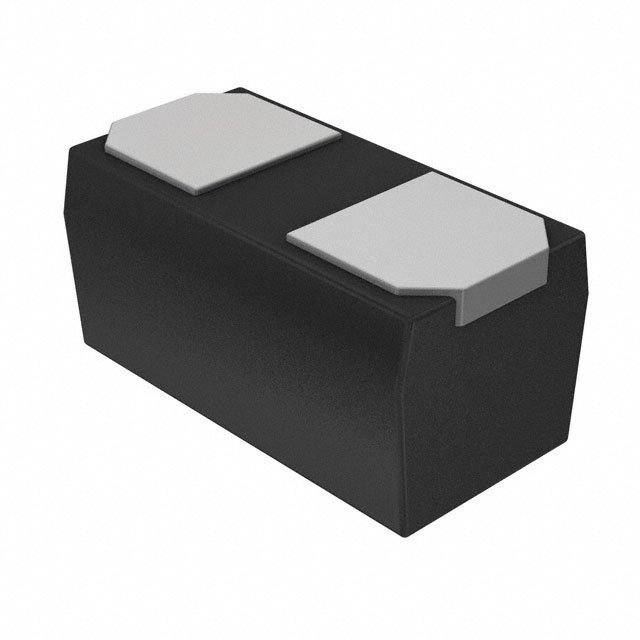

Same model may have multiple batches, images only for reference.
DF2B7SL,L3F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

DF2B7SL,L3F

Part No DF2B7SL,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 5.3VWM 16VC
Datasheet
DF2B7SL,L3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.3V (Max)
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 16V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 45W
Applications General Purpose
Capacitance @ Frequency 6pF @ 1MHz
Mounting SMD (SMT)
Case / Package SL2
Win Source Part Number 1032928-DF2B7SL,L3F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF2B7SL,L3F CAD Model

Description

The Toshiba Semiconductor and Storage steering component is a rail to rail type component that is ideal for general purpose applications.

  • Mounting: SMD (SMT)
  • Channel: Unidirectional
  • Capacitance at Frequency: 6pF @ 1MHz
  • Stand-off Voltage: 5.3V (Max)
  • Minimum Breakdown Voltage: 5.8V
  • Max Clamping Voltage: 16V
  • Peak Pulse Current (Ippm): 3A (8/20μs)
  • Power Dissipation: 45W
  • Supply and Demand Status: balanced
