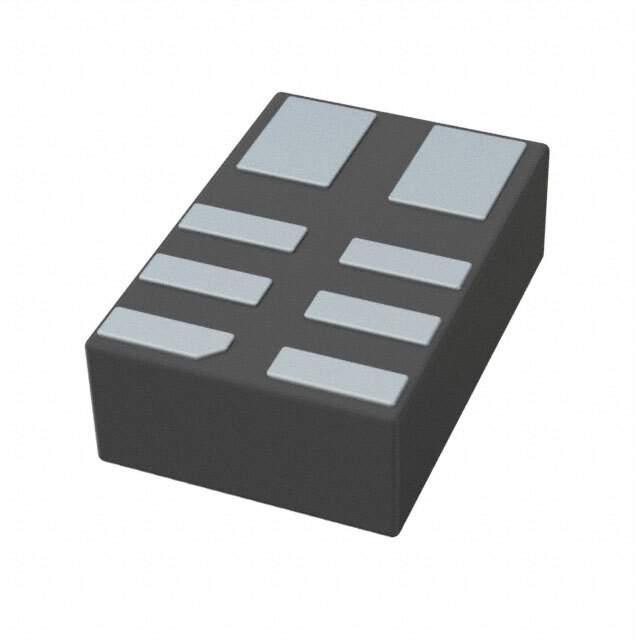

XCL224A183D2-G Real Image
Same model may have multiple batches, images only for reference.

XCL224A183D2-G

Part No XCL224A183D2-G
Manufacturer Torex Semiconductor Ltd
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.8V / Non-Isolated PoL Module DC DC Converter 1 Output 1.8V 700mA 2.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Torex Semiconductor Ltd
Series XCL224
Package Tape & Reel
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 1.8V
Current - Output (Max) 700mA
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 105°C
Efficiency 88%
Mounting SMD (SMT)
Package / Case 8-SMD Module
Dimension 0.09" L x 0.06" W x 0.03" H (2.3mm x 1.5mm x 0.8mm)
Supplier Device Package USP-8B04
Control Features Enable, Active High
Base Product Number XCL224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 893-1418-2,893-1418-1,893-1418-6
Standard Package 3,000
Win Source Part Number 1121337-XCL224A183D2-G
Ultra Librarian 3D Model Ultra Librarian XCL224A183D2-G CAD Model

Description

The XCL224A183D2-G is a non-isolated PoL module from Torex Semiconductor Ltd.

  • Application: Power Supplies
  • Efficiency: 88 percent
  • Current Output: 700mA
  • Input Voltage Range: 2.5V to 5.5V
  • Quality: High
  • Durability: Excellent
  • Application Use: ITE (Commercial) applications
  • Package: Tape and Reel
  • Form Factor: 0.09" L x 0.06" W x 0.03" H (2.3mm x 1.5mm x 0.8mm)
  • Design: designed to meet the needs of today's demanding electronic devices.
