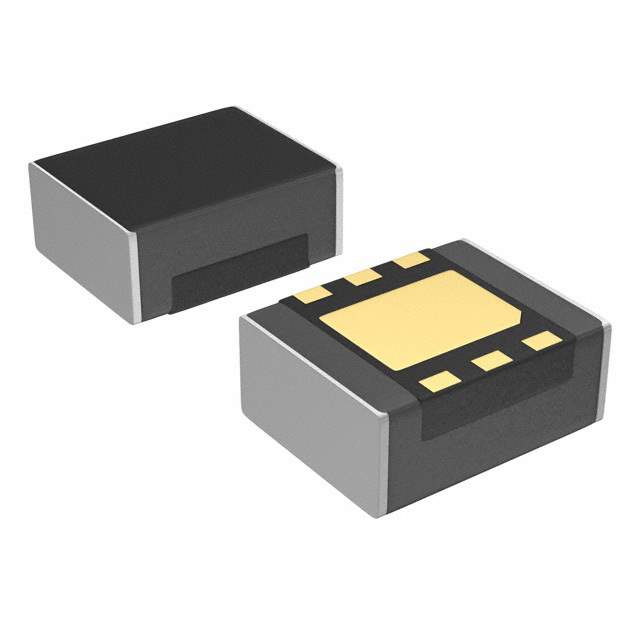

Same model may have multiple batches, images only for reference.

XCL206B333AR-G

Name: XCL206B333AR-G
Brand: Torex Semiconductor Ltd
SKU: 1105771
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XCL206B333AR-G
Manufacturer	Torex Semiconductor Ltd
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V / Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 600mA 2V - 6V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Torex Semiconductor Ltd
Series	XCL206
Package	Tape & Reel
Product Status	Not For New Designs
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2V
Voltage - Input (Max)	6V
Voltage - Output 1	3.3V
Current - Output (Max)	600mA
Applications	ITE (Commercial)
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	90%
Mounting	SMD (SMT)
Package / Case	6-TDFN Exposed Pad
Dimension	0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Supplier Device Package	CL-2025
Base Product Number	XCL206
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	893-1161-2,893-1161-1,893-1161-6,XCL206B333ARG
Standard Package	3,000
Win Source Part Number	1105771-XCL206B333AR-G
Ultra Librarian 3D Model	Ultra Librarian XCL206B333AR-G CAD Model

Description

The XCL206B333AR-G is a non-isolated PoL module that belongs to the power supplies - board mount>DC DC converters category, manufactured by Torex Semiconductor Ltd.

Part Number @ Win Source: 1105771
Maximum Output Current: 600mA
Input Voltage: 2V to 6V
Output Voltage: 3.3V
Efficiency: 90 percent
Features: SCP and UVLO
Package: Tape & reel
Supplier Device Package: CL-2025
Operating Temperatures: -40°C to 85°C
Dimension: 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Status: Not for new designs
