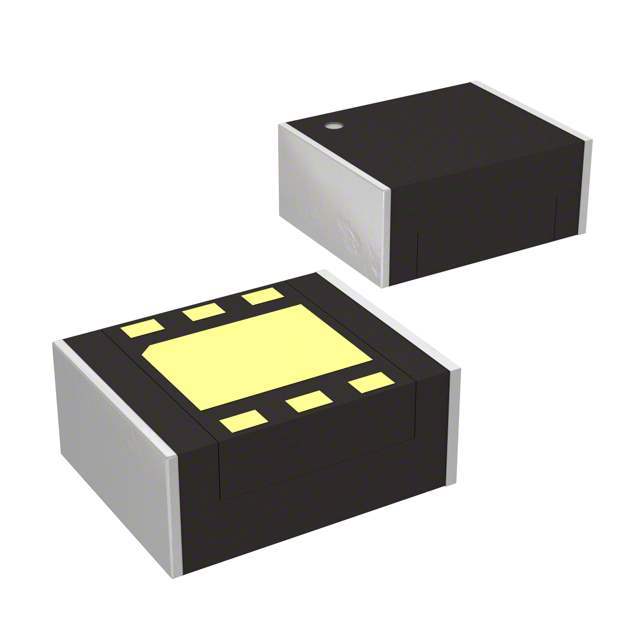

XCL101A501BR-G Torex Semiconductor Ltd
Same model may have multiple batches, images only for reference.

XCL101A501BR-G

Part No XCL101A501BR-G
Manufacturer Torex Semiconductor Ltd
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER 5V 0.5W
Datasheet
XCL101A501BR-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307079-XCL101A501BR-G
Category Power Supplies - Board Mount DC DC Converters
Mfr Torex Semiconductor Ltd
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Not For New Designs
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 0.9V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 100mA
Ultra Librarian 3D Model Ultra Librarian XCL101A501BR-G CAD Model

Description

  • Input Voltage Range : Operating hold voltage 0.7V~5.5V Start-up voltage 0.9V~5.5V
  • Output Voltage Range : XCL100 3.0V ~ 5.0V (±2.0%) XCL101 1.8V ~ 5.0V (±2.0%)
  • Output Current : 80mA＠VOUT=3.3V, VBAT=1.8V
  • Supply Current : 6.3μA (VBAT=VOUT+0.5V)
  • Control Method : PFM Control
  • PFM Switching Current : 350mA
  • Functions : Load Disconnection or Bypass Mode CL Discharge
  • Output Capacitor : Ceramic Capacitor Compatible
  • Operating Ambient Temperature :- 40ºC ~ 85ºC
  • Package : CL-2025, CL-2025-02
  • Environmentally Friendly : EURoHS Compliant, Pb Free
