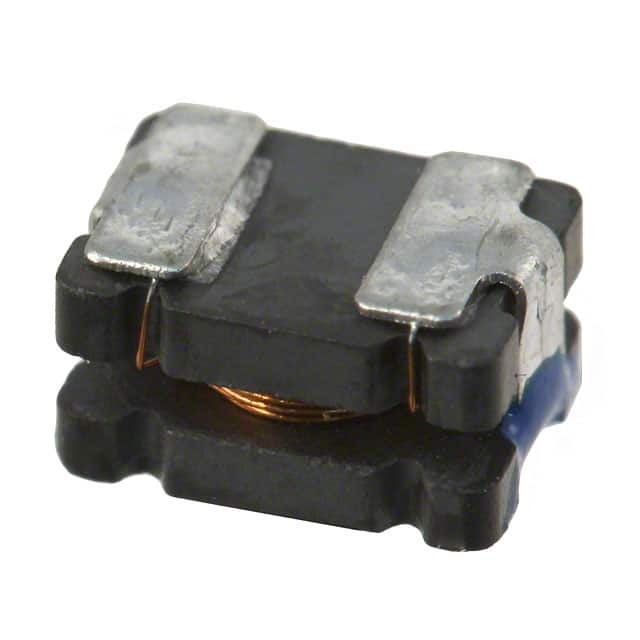

Same model may have multiple batches, images only for reference.
300LS-820K=P2 Toko America Inc.
Same model may have multiple batches, images only for reference.

300LS-820K=P2

Part No 300LS-820K=P2
Manufacturer Toko America Inc.
Catalog Fixed Inductors
Description FIXED IND 82UH 75MA 4.42 OHM SMD / 82 µH Unshielded Drum Core, Wirewound Inductor 75 mA 4.42Ohm Max 1812 (4532 Metric)
Datasheet
300LS-820K=P2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Toko America Inc.
Series 43FS
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±10%
Current Rating (Amps) 75 mA
Shielding Unshielded
DC Resistance (DCR) 4.42Ohm Max
Q @ Freq 50 @ 25.2MHz
Frequency - Self Resonant 7.7MHz
Temperature Range - Operating -10°C ~ 60°C
Inductance Frequency - Test 25.2 MHz
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.126" (3.20mm)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8504.50.8000
Other Names 300LS-820(K)-P,TKS1236CT,TKS1236DKR,TKS1236TR,300LS820KP2,300LS-820(K),TKS1236
Standard Package 500
Win Source Part Number 991860-300LS-820K=P2
Ultra Librarian 3D Model Ultra Librarian 300LS-820K=P2 CAD Model

Description

The Toko America Inc. 991860-300LS-820K=P2 electronic component is a fixed inductor with a series of 43FS and a type of drum core, wirewound.

  • Component Type: Fixed Inductor
  • Series: 43FS
  • Type: Drum core, wirewound
  • Package: Tape & reel (TR), cut tape (CT)
  • Shielding: Unshielded
  • Inductance: 82 µH
  • Tolerance: ±10%
  • Material-Core: Ferrite
  • Frequency-Self Resonant: 7.7MHz
  • Package/Case: 1812 (4532 Metric)
  • DC Resistance (DCR): 4.42Ohm Max
  • Supplier Device Package: 1812
  • Operating Temperature: -10°C to 60°C
  • Manufacturer: Toko America Inc.
  • Win Source Part Number: 991860-300LS-820K=P2
