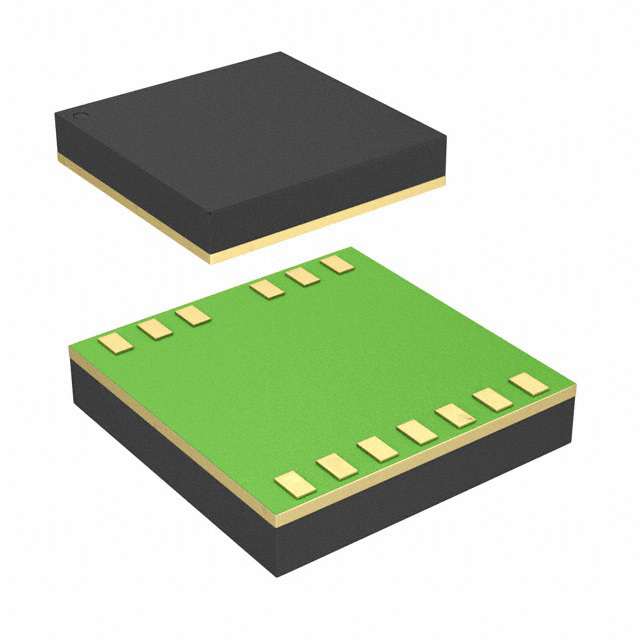

Introducing the UCC20225QNPLRQ1 from Texas Instruments

The UCC20225QNPLRQ1 is a state-of-the-art, automotive-grade, dual-channel gate driver designed by Texas Instruments to meet the stringent requirements of high-performance power systems. This advanced component is specifically tailored for driving power MOSFETs, IGBTs, and SiC MOSFETs in applications that demand high reliability and efficiency, such as electric vehicles, powertrain systems, and advanced driver assistance systems (ADAS).

Key Features:

• Robust Isolation: The UCC20225QNPLRQ1 incorporates capacitive isolation technology, providing reinforced insulation that ensures a high degree of electrical separation between input and output stages. This feature is critical for safety and system reliability in automotive applications.
• High-Performance Driving: With a peak source and sink current capability of up to 4A, this gate driver delivers the power needed to switch power semiconductors efficiently and with minimal delay, thus improving the overall performance of the power stage.
• Wide Operating Range: The device operates over a wide temperature range, making it suitable for harsh automotive environments. It also features an extended VDD operating range to accommodate various application needs.
• Advanced Protection Features: The UCC20225QNPLRQ1 is equipped with a suite of protection features, including under-voltage lockout (UVLO), over-current protection, and thermal shutdown, helping to prevent damage to the power stage components under fault conditions.
• Flexibility: With independent inputs for each channel, the device offers design flexibility, allowing for use in half-bridge, full-bridge, and other topologies as needed by the application.

Automotive-Quality Assurance:

As an automotive-qualified product, the UCC20225QNPLRQ1 meets the rigorous AEC-Q100 standards, ensuring reliability and performance under the extreme conditions typical of automotive applications. Its enhanced ruggedness and quality make it an ideal choice for designers seeking to improve the efficiency and longevity of their automotive power systems.

Whether you're developing an inverter for an electric vehicle or a power supply for an ADAS module, the UCC20225QNPLRQ1 from Texas Instruments provides the driving force you need to achieve high efficiency and reliability in your automotive applications.
