The TRF1121IRGZR from Texas Instruments is a high-performance, single-chip RF mixer designed to meet the demanding requirements of wireless communication systems. This advanced RF mixer is part of the TRF112x series, known for its exceptional signal processing capabilities in the radio frequency domain.

The device operates within a frequency range that makes it suitable for various applications, including but not limited to cellular base stations, wireless infrastructure, RF/IF stage in communication systems, and software-defined radios. The TRF1121IRGZR is specifically engineered to offer superior linearity and noise performance, which is critical for maintaining signal integrity in complex modulation schemes.

Key Features:

• Frequency Range: The mixer supports a wide frequency range, making it versatile for multiple RF applications.
• Low Noise Figure: It boasts a low noise figure, ensuring minimal signal degradation and improved receiver sensitivity.
• High Linearity: The high linearity feature of the TRF1121IRGZR allows it to handle high signal levels without distortion, which is crucial for maintaining signal fidelity in communication systems.
• Integration: The device integrates several functions into a single chip, reducing the need for external components and simplifying the design of RF circuits.

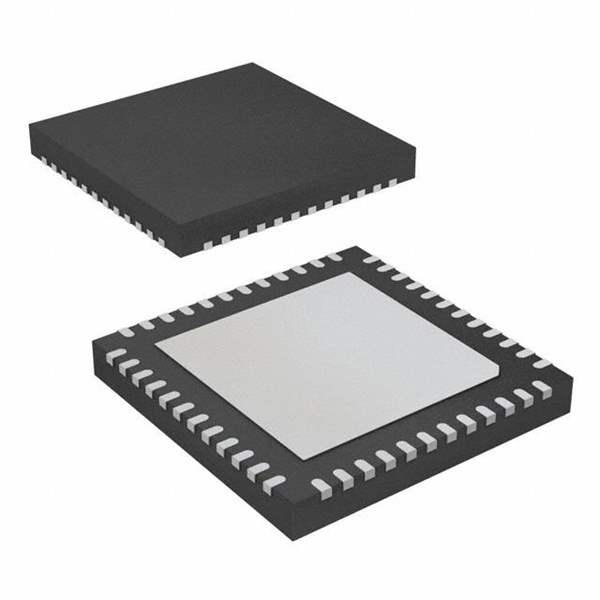

• Package: It comes in a compact VQFN (Very Thin Quad Flat Non-leaded) package, which is ideal for space-constrained applications.

Applications:

• Wireless Communication Systems
• Cellular Base Stations
• RF/IF Stages in Communication Equipment
• Software-Defined Radios

The TRF1121IRGZR is designed to provide a balance between performance and power efficiency. It is manufactured using advanced semiconductor processes that ensure reliability and consistency in operation. For designers and engineers looking to build high-quality RF systems, the TRF1121IRGZR offers a compelling blend of performance, integration, and compactness, making it an excellent choice for next-generation wireless solutions.
