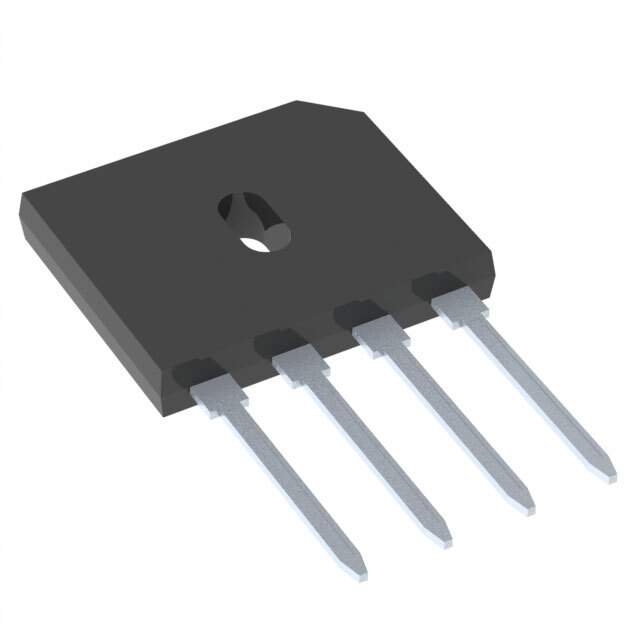

GBU4D-BP Real Image
Same model may have multiple batches, images only for reference.

GBU4D-BP

Part No GBU4D-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 4A 200V GBU / Diode Rectifier Bridge Single 200V 4A 4-Pin Case GBU Bulk/Tube
Datasheet
GBU4D-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 2A
Current - Reverse Leakage @ Vr 5μA @ 200V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775020-GBU4D-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name GBU4D
Introduction Date September 30, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian GBU4D-BP CAD Model

Description

The Micro Commercial Co product with Win Source Part Number 775020-GBU4D-BP is a 4-SIP, GBU packaged diode used for discrete semiconductor products.

  • Current - average rectified (Io): 4A
  • Current - reverse leakage @ Vr: 5μA @ 200V
  • Voltage - peak reverse (maximum): 200V
  • Voltage - forward (Vf) (maximum) @ If: 1V @ 2A
  • Alternative parts: GBU4D, GBU403, GBU403 C2, and GBU403 D2
  • Introduction date: September 30, 1998
  • ECCN: EAR99
  • Quantity per package: 1k pcs
  • Estimated EOL date: 2029
  • Halogen-free: compliant
