Overview of Texas Instruments TPSM5D1806RDBR

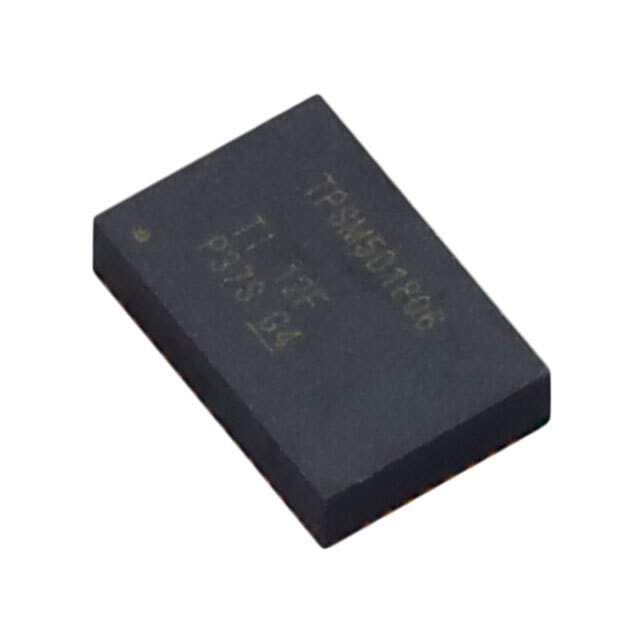

The Texas Instruments TPSM5D1806RDBR is a high-performance, integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This innovative product is designed to simplify the power supply design by providing a compact, easy-to-use power module that only requires minimal external components.

Key Features

• Integrated Power Solution: The TPSM5D1806RDBR integrates the inductor and passives to provide a complete power supply system, reducing design complexity and saving board space.
• Wide Input Voltage Range: This module supports a wide input voltage range from 4.5V to 17V, making it versatile for various applications.
• High-Efficiency: The device offers high efficiency that reduces power loss and improves system performance.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5.5V, which allows for flexibility across different design requirements.
• Thermal Performance: Enhanced thermal performance ensures reliability and longevity even in demanding conditions.
• Protection Features: It includes over-current, over-temperature, and under-voltage lockout protections to safeguard the system against abnormal operating conditions.

Applications

The TPSM5D1806RDBR is suitable for a wide range of applications, including but not limited to:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Point-of-Load Conversions
• Computing and Storage Systems

Product Benefits

The compact size and high integration level of the TPSM5D1806RDBR make it an excellent choice for designers looking to reduce development time and improve time-to-market. Its ease of use, combined with robust protection features, ensures that the end product is reliable and efficient. The flexibility in input voltage and adjustable output voltage also means that it can be used across a variety of platforms without significant redesign, providing a versatile solution for power supply needs.

Conclusion

In summary, the Texas Instruments TPSM5D1806RDBR is a powerful, integrated module that offers a high degree of efficiency, flexibility, and reliability for a range of electronic applications. Its comprehensive feature set and compact design make it an ideal choice for designers aiming to optimize their power management solutions.
