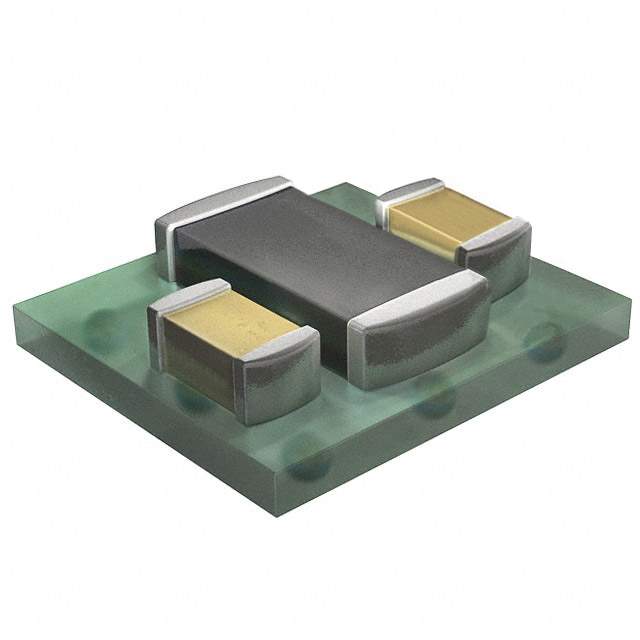

The TPS82698SIPR is a highly efficient, fully integrated, synchronous step-down converter from the trusted semiconductor manufacturer, Texas Instruments. Designed for battery-powered portable applications, this microSiP™ power module is ideal for systems requiring a compact, high-performance power solution.

Key Features

• High Efficiency: With an advanced 2.25 MHz switched-mode buck converter, the TPS82698SIPR achieves excellent power conversion efficiency, which is critical for extending battery life in portable devices.
• Integrated Inductor: The module includes a high-quality integrated inductor, simplifying design and reducing external component count, which results in a smaller PCB footprint and a faster time-to-market.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 0.6 V to 3.3 V, allowing for versatile use across various applications that require different voltage levels.
• Low Quiescent Current: The device features a low quiescent current, which minimizes standby power consumption, further enhancing battery efficiency.
• Power Save Mode: To maintain high efficiency at light loads, the TPS82698SIPR includes a Power Save Mode, which ensures that the power supply remains efficient even when the load decreases.

Applications

The TPS82698SIPR is suitable for a wide range of applications, including but not limited to:

• Smartphones and Tablets
• Wireless Power Transmitters
• Portable Media Players
• Wearable Technology
• GPS Devices
• Medical Monitoring Equipment

Technical Specifications

The module operates over a wide input voltage range of 2.3 V to 4.8 V, making it compatible with a variety of battery technologies. Its compact microSiP package measures just 2.9 mm x 2.3 mm x 1.1 mm, making it one of the smallest power management solutions in its class. Additionally, the TPS82698SIPR is designed for a maximum output current of up to 600 mA, catering to the needs of high-performance portable electronics.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS82698SIPR is no exception. It is manufactured to meet high standards of performance and reliability, ensuring that your application is powered efficiently and consistently.
