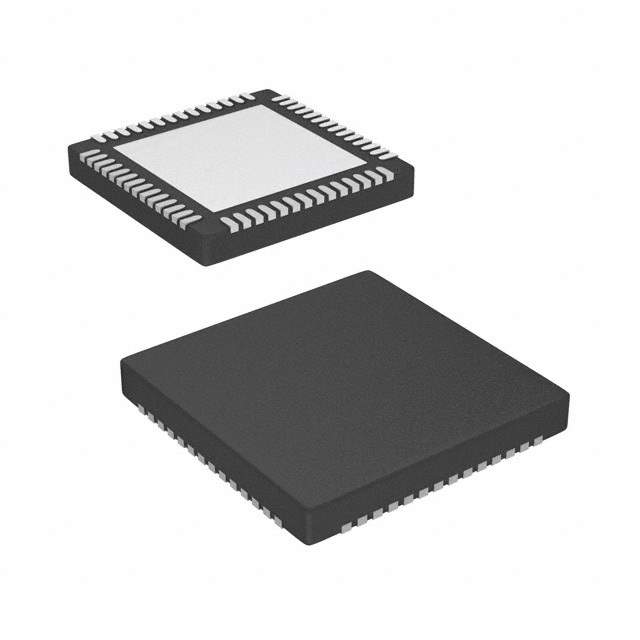

The TPS65820RSHT is a highly integrated power management IC from Texas Instruments, designed to cater to the demanding needs of portable and handheld devices. This advanced chip offers a comprehensive solution for power supply management and battery charging, making it an ideal choice for designers looking to streamline their power system architecture.

Key Features

• Multiple Power Channels: The TPS65820RSHT features several DC/DC converters and LDOs, providing various power rails for system components.
• Integrated Battery Charger: It includes a programmable battery charger with support for lithium-ion and lithium-polymer batteries, ensuring efficient charging and longer battery life.
• Flexible Power Sequencing: The device offers configurable power sequencing options, allowing designers to tailor the power-up and power-down sequences to their specific application requirements.
• I²C Interface: An I²C-compatible serial interface is available for programming and control, enabling dynamic voltage scaling and other adjustments on the fly.
• SmartReflex™ Technology: Incorporating Texas Instruments' SmartReflex technologies for power and performance optimization, the TPS65820RSHT can adapt to different performance states, reducing power consumption when full performance is not required.

Applications

The versatility of the TPS65820RSHT makes it suitable for a wide range of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Handheld Gaming Devices
• GPS Navigation Systems
• Other Battery-Powered Consumer Electronics

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The TPS65820RSHT is built to meet the high standards expected from TI products, ensuring long-term performance and dependability in your designs.

Environmental Considerations

The TPS65820RSHT is designed with environmental responsibility in mind. It is compliant with RoHS regulations, minimizing the environmental impact by restricting the use of certain hazardous substances in electronic equipment.
