Product Overview: TPS62693YFDR by Texas Instruments

The TPS62693YFDR is a high-efficiency, low-noise, step-down converter from Texas Instruments, designed to deliver outstanding performance in power management applications. This compact and versatile integrated circuit (IC) is suitable for battery-powered devices due to its ability to efficiently convert a higher voltage input to a lower voltage output with minimal power loss.

Key Features

• High Efficiency: The TPS62693YFDR boasts a high efficiency over a wide load range, which is critical for extending battery life in portable devices.
• Adjustable Output Voltage: Users can program the output voltage from 0.6V to 2.4V, allowing flexibility across different applications.
• Low Noise Operation: The device employs a 3MHz fixed frequency operation to minimize noise, making it ideal for RF-sensitive applications.

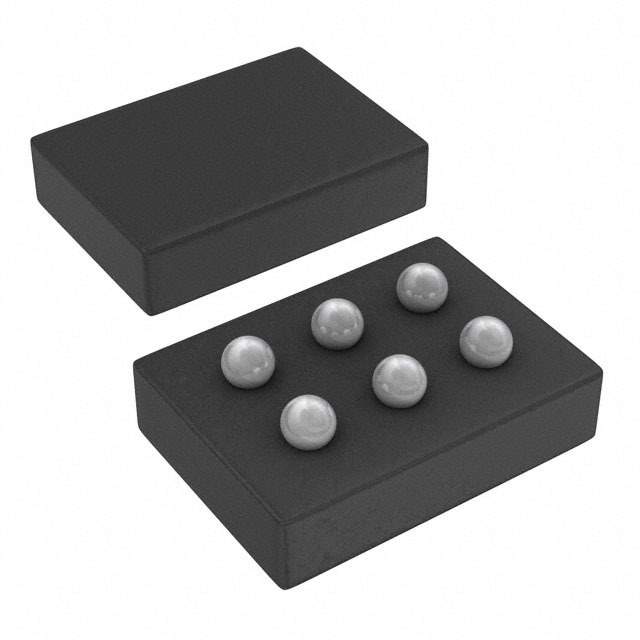

• Small Footprint: Housed in a compact 2x2mm 6-pin SON package, the TPS62693YFDR saves valuable board space in space-constrained applications.
• Power Save Mode: It includes a power save mode that ensures high efficiency at low power, reducing idle power consumption.

Applications

The TPS62693YFDR is designed to meet the needs of a variety of applications, particularly where power efficiency and space are at a premium. It is well-suited for:

• Smartphones and Tablets
• Wearable Technology
• Wireless Headsets and Earbuds
• Portable Medical Devices
• IoT Devices

Technical Specifications

This step-down converter operates with an input voltage range of 2.3V to 5.5V, making it compatible with various battery chemistries and configurations. The TPS62693YFDR is designed for a maximum output current of 1200mA, which is sufficient for a wide range of portable electronics. Its thermal performance is enhanced by a thermal shutdown feature, ensuring device protection under high temperature conditions.

With its excellent combination of efficiency, adjustability, and compact size, the TPS62693YFDR from Texas Instruments is an ideal choice for designers looking to optimize their power management solutions.
