TPS22925BYPHR by Texas Instruments

The TPS22925BYPHR is a compact, low-voltage, single-channel load switch designed by Texas Instruments (TI) for effective power distribution and management in electronic systems. This device is part of TI's extensive range of power switches optimized for low-power applications, offering both high performance and reliability.

Key Features

• Input Voltage Range: The TPS22925BYPHR operates over a wide input voltage range from 1.1V to 5.5V, making it versatile for various low-voltage applications.
• Low ON-Resistance: The device boasts a low ON-resistance (R_ON) of typically 56 mΩ at 5V, which helps minimize power loss and improve efficiency when the switch is in the ON state.
• Quick Output Discharge: An integrated quick output discharge transistor ensures a rapid discharge of the output capacitance when the switch is turned off, which is critical for applications requiring immediate power-down of the load.
• Controlled Slew Rate: The TPS22925BYPHR features a controlled slew rate to mitigate inrush current, thereby preventing potential damage to sensitive components and reducing noise in the system.
• Ultra-Low Quiescent Current: It exhibits an ultra-low quiescent current of 0.5 µA (typical) when the switch is off, contributing to energy savings and longer battery life in portable applications.

Applications

The TPS22925BYPHR is suitable for a wide array of applications, including but not limited to:

• Smartphones, Tablets, and Wearable Devices
• Wireless Headsets and Audio Equipment
• Portable Medical Devices
• Power Management for Peripheral Ports
• IoT and Battery-Powered Devices

Package and Quality

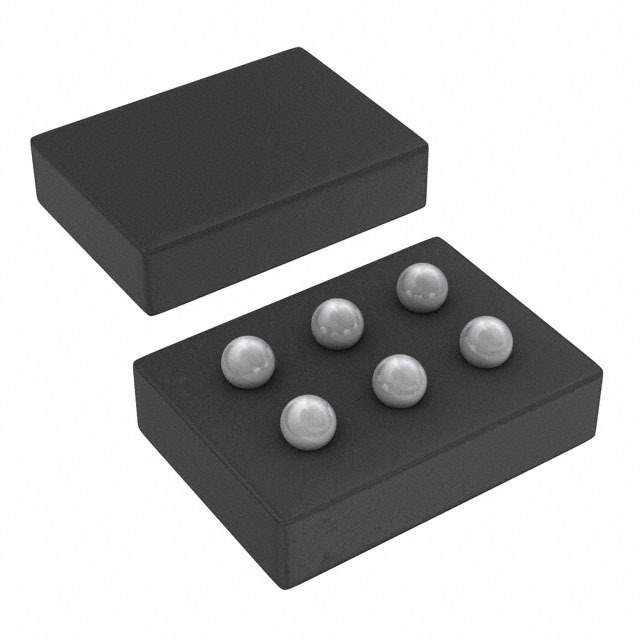

This load switch is available in a compact 6-pin, 1.5mm x 1mm, wafer chip scale package (WCSP) that is suitable for space-constrained applications. The TPS22925BYPHR is designed and manufactured to meet the high standards of quality and reliability that are synonymous with Texas Instruments' products.

For designers and engineers looking for a reliable power management solution, the TPS22925BYPHR offers the performance, efficiency, and space-saving design required for today's cutting-edge electronic devices.
