Product Overview: TPS22919DCKR by Texas Instruments

The TPS22919DCKR is a high-precision, compact integrated circuit (IC) from Texas Instruments, designed to efficiently manage power distribution in electronic systems. This power switch is particularly suitable for applications that require a low-voltage, high-speed, single-channel load switch with controlled turn-on functionality.

Key Features

• Input Voltage Range: The device operates over an input voltage range of 0.9V to 5.5V, making it versatile for various low-voltage applications.
• Ultra-Low On-Resistance: The TPS22919DCKR boasts an ultra-low on-resistance (rON) of typically 70 mΩ at 5V, ensuring minimal voltage drop and power loss across the switch when it is in the ON state.
• Quick Output Discharge: An integrated quick output discharge transistor provides a rapid discharge of the load capacitance when the switch is turned off, which is critical for power sequencing and reducing power consumption in standby modes.
• Controlled Turn-On: The device features a controlled turn-on time to avoid inrush current spikes, which can be harmful to sensitive electronic components.
• Current Limit Protection: The TPS22919DCKR is equipped with current limit protection to safeguard the device and the load from excessive current that can lead to damage or failure.
• Thermal Shutdown: Thermal shutdown protection is integrated to prevent overheating, thereby enhancing the longevity and reliability of the IC.

Applications

The TPS22919DCKR is ideal for a wide range of applications, including but not limited to:

• Portable and battery-powered devices
• Smartphones and tablets
• Wearable technology
• Power management for subsystems
• SSDs and other storage devices

Package and Quality

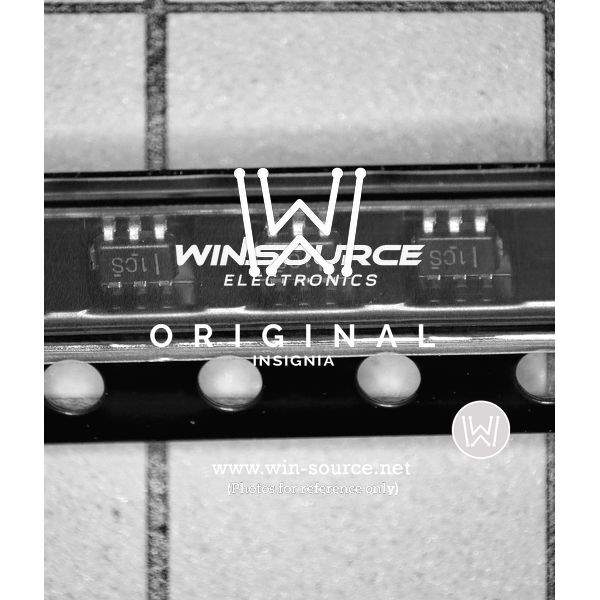

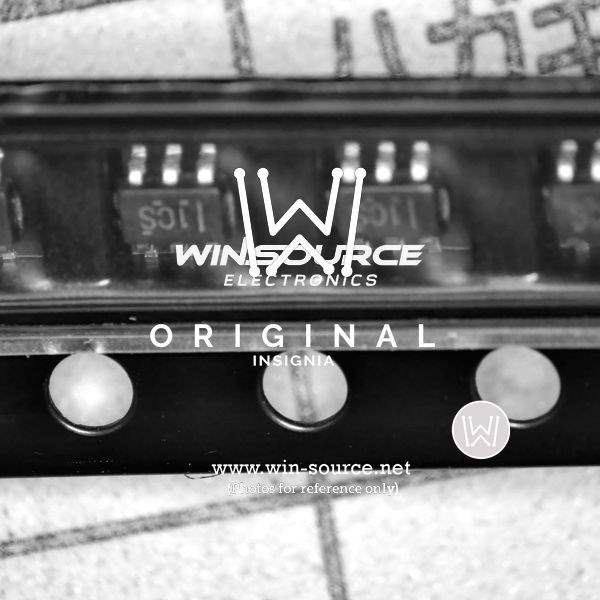

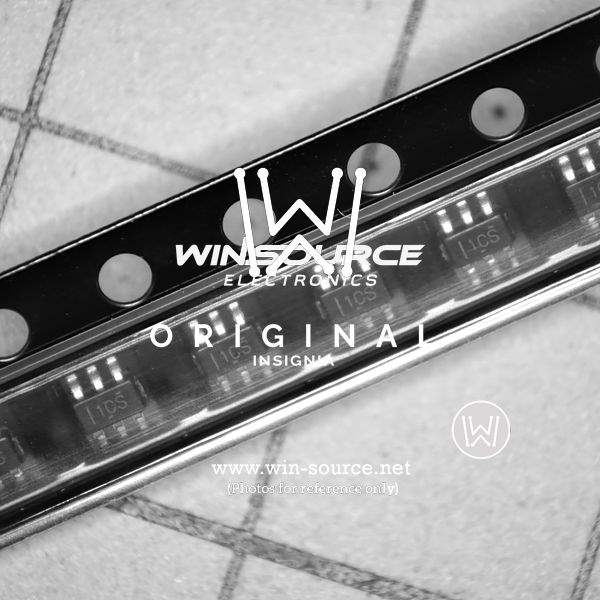

The device comes in a compact, space-saving 6-pin SC-70 package, which is highly suitable for portable and space-constrained applications. Texas Instruments ensures high standards of quality and reliability, making the TPS22919DCKR a dependable choice for designers looking to enhance their power management solutions.
