Product Overview: TPS22910AYZVR by Texas Instruments

The TPS22910AYZVR is a high-performance, low rON load switch designed by Texas Instruments, a leader in semiconductor solutions. This tiny, yet powerful component is engineered to effectively manage power distribution in a variety of electronic applications. With its compact form factor and robust feature set, the TPS22910AYZVR is an ideal choice for designers looking to enhance system power efficiency and reliability.

Key Features

• Low On-Resistance: The TPS22910AYZVR boasts an ultra-low on-resistance (rON) of typically 58 mΩ at a 5V input, which minimizes power loss and improves efficiency.
• Input Voltage Range: This load switch is designed to operate over a wide input voltage range from 1.1V to 5.5V, making it versatile for various low-voltage applications.
• Current Handling: It can handle up to 2A of continuous current, providing sufficient throughput for a wide range of devices and systems.
• Quick Output Discharge: The device includes an integrated quick output discharge transistor, which allows for rapid deactivation of downstream components when the switch is turned off.
• Controlled Slew Rate: The TPS22910AYZVR features a controlled slew rate to mitigate inrush current and prevent system voltage droop during turn-on.
• Low Quiescent Current: The quiescent current is extremely low, conserving power when the switch is in the off state.
• Protection Features: It incorporates robust protection features such as over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown, safeguarding both the load switch and the system it protects.

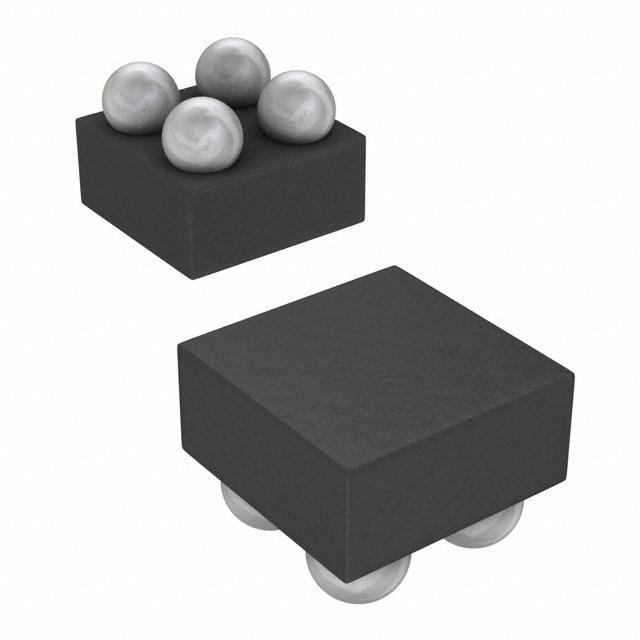

• Small Package: The device comes in a tiny 1.5mm x 1.5mm 6-pin wafer chip-scale package (WCSP), which is ideal for space-constrained applications.

Applications

The TPS22910AYZVR is suitable for a variety of applications where efficient power distribution and space economy are critical. These include:

• Portable Electronics
• Smartphones and Tablets
• Wearable Devices
• Power Management for Peripheral Ports
• SSDs and Other Memory Devices
• IoT Devices

With its impressive combination of performance, efficiency, and protection features, the TPS22910AYZVR from Texas Instruments stands out as a reliable power management solution for designers and engineers aiming to optimize their power-sensitive applications.
