The TPD4F202YFUR is a state-of-the-art, four-channel Transient Voltage Suppressor (TVS) diode array from Texas Instruments, designed to protect sensitive electronic circuits from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient component is a crucial safeguard for maintaining the integrity and reliability of a wide range of electronic systems.

Key Features

• ESD Protection: The TPD4F202YFUR offers excellent ESD protection for high-speed data lines, capable of withstanding ESD strikes of ±8 kV contact discharge and ±15 kV air-gap discharge, in accordance with the IEC 61000-4-2 international standard.
• Low Capacitance: With a low loading capacitance of 0.8 pF (typical) per I/O, this device is ideal for protecting high-speed data lines without significantly affecting signal integrity.

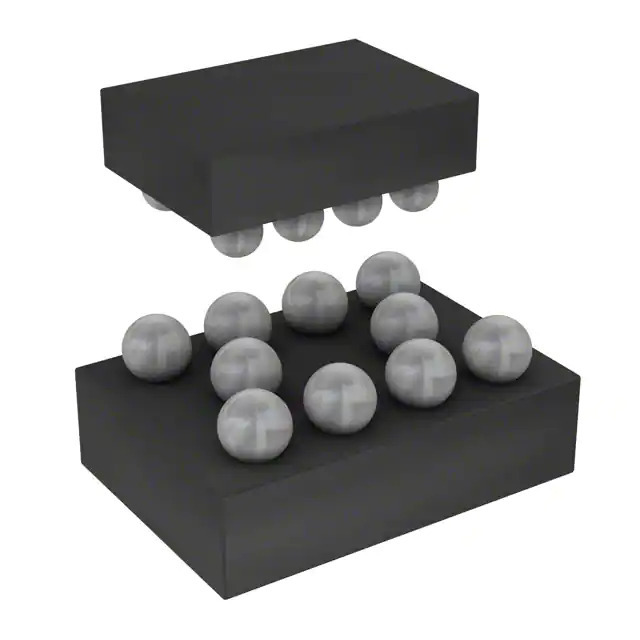

• Small Package: The device comes in a space-saving DSBGA (YF) package, which is a mere 1.37 mm x 1.77 mm, making it suitable for use in compact electronic assemblies.
• Wide Operating Range: It operates over a broad temperature range of -40°C to 85°C, ensuring reliable protection across various environmental conditions.
• Low Leakage Current: The TPD4F202YFUR has a low leakage current of less than 0.05 µA (max) at 5.5 V, which helps to preserve battery life in portable applications.
• Integration: This device integrates four TVS diodes, which simplifies design and reduces the number of components required on a printed circuit board (PCB).

Applications

The TPD4F202YFUR is suitable for a variety of applications that require robust ESD protection. It is commonly used in:

• USB interfaces
• Mobile handsets
• Portable electronics
• High-speed data lines
• Consumer electronics

With its combination of high-level ESD protection, low capacitance, and compact form factor, the TPD4F202YFUR from Texas Instruments is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
