The TMUX7234RRQR from Texas Instruments is a cutting-edge, precision analog multiplexer that offers exceptional performance and versatility for a wide range of applications. This device is part of the TMUX series, which is renowned for its high-quality signal switching capabilities.

Key Features

• Low On-Resistance: The TMUX7234RRQR boasts an ultra-low on-resistance (Ron) that typically stands at 5 ohms, ensuring minimal signal distortion and power loss during operation.
• Wide Operating Range: With an operating voltage range from 1.08 V to 5.5 V, this multiplexer is highly flexible and can be used in various applications, from low-voltage portable devices to higher voltage industrial equipment.
• Multiple Channels: The device features four single-pole, single-throw (SPST) switches, which allow for precise control and routing of analog signals.
• Low Charge Injection: The TMUX7234RRQR exhibits low charge injection, which minimizes the impact on signal integrity, making it ideal for sensitive applications such as data acquisition and audio signal routing.
• Extended Temperature Range: It operates reliably over an extended temperature range from -40°C to +125°C, catering to automotive and industrial environments that require robust performance.
• Logic-Level Compatibility: The multiplexer is compatible with 1.8V logic inputs, providing ease of integration with modern microcontrollers and digital logic interfaces.

Applications

The TMUX7234RRQR is versatile and can be integrated into various systems, including:

• Data acquisition systems
• Signal routing applications
• Audio and video switching
• Communication systems
• Test equipment
• Automotive and industrial electronics

Package and Quality

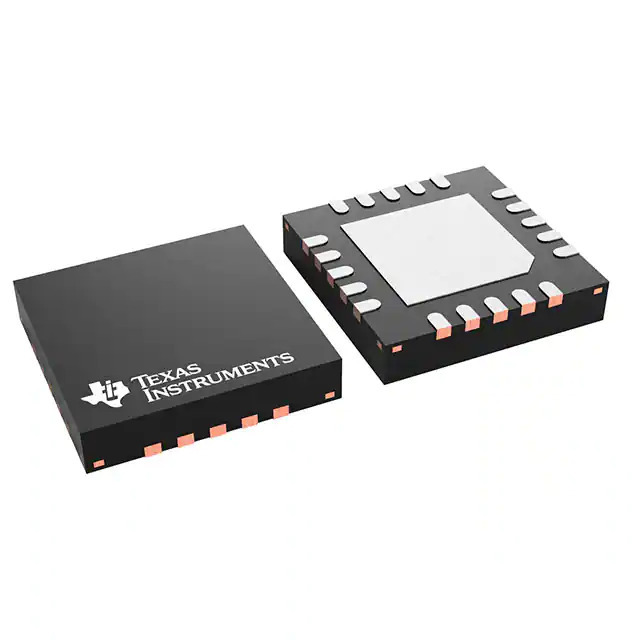

The device is available in a compact QFN-16 package, which allows for a space-saving footprint on printed circuit boards. The TMUX7234RRQR is also RoHS compliant and follows Texas Instruments' commitment to quality and environmental management, making it a reliable and eco-friendly choice for your next project.
