The TMS320F28334PTPQ from Texas Instruments is a highly capable digital signal processor (DSP) that is part of the TMS320F2833x series of products. This DSP is designed to meet the demanding processing needs of modern embedded control applications. Its robust architecture and specialized instruction set make it ideal for applications such as industrial control, motor control, power conversion, intelligent sensing, and more.

Key Features

• High-Performance: The TMS320F28334PTPQ features a 32-bit CPU that can run at a frequency of up to 150 MHz, delivering up to 300 million instructions per second (MIPS).
• Advanced Control Peripherals: It includes a rich set of peripherals specifically designed for control applications, including PWM outputs, capture inputs, quadrature encoder interfaces, and analog-to-digital converters (ADCs).
• Integrated Memory: This DSP comes with 256 KB of flash memory and 34 KB of RAM, allowing for efficient code and data storage.
• Flexible Connectivity: With multiple serial ports, including SCI (UART), SPI, CAN, and I2C, the TMS320F28334PTPQ provides versatile options for communication with other devices and systems.
• Real-Time Debugging: An onboard JTAG interface ensures easy real-time debugging and programming, which is essential for rapid development and testing.

Applications

The DSP's high processing power and specialized peripherals make it suitable for a wide range of applications, such as:

• Advanced motor control systems
• Digital power supplies and converters
• Renewable energy systems, like solar inverters and wind turbine controllers
• Industrial automation and robotics
• Automotive control systems

Package and Quality

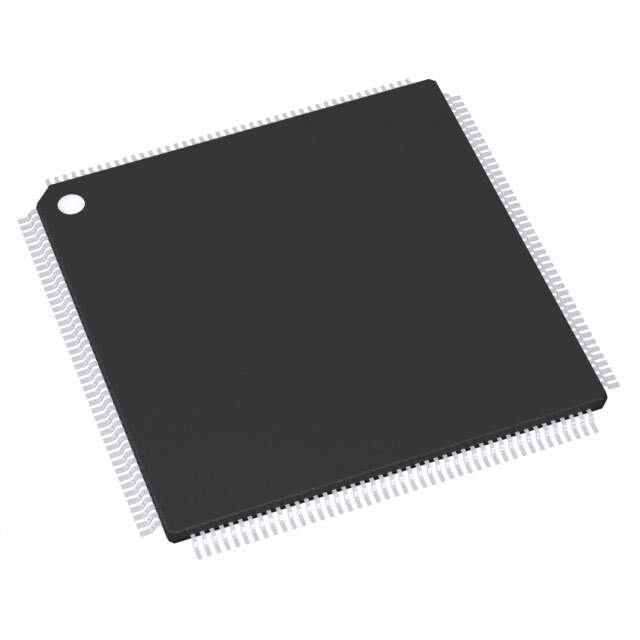

The TMS320F28334PTPQ is offered in a 176-pin LQFP (Low-Profile Quad Flat Package) that provides a compact footprint for space-constrained applications. It is designed to meet the rigorous quality standards of Texas Instruments, ensuring reliability and performance in the most challenging environments.

Overall, the TMS320F28334PTPQ DSP is a powerful solution for developers looking to integrate advanced control and processing capabilities into their systems, with the backing of Texas Instruments' renowned support and quality.
