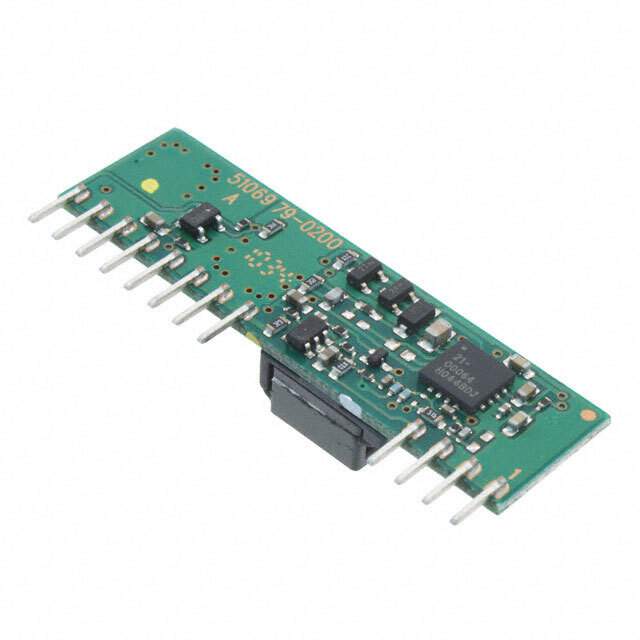

The PTV05020WAH is a highly efficient, non-isolated voltage regulator module designed and manufactured by Texas Instruments. This state-of-the-art power solution is part of the PTV series, known for its exceptional performance in a wide range of applications. The PTV05020WAH is particularly suited for high-performance computing systems, telecommunications equipment, and industrial applications requiring a compact, high-efficiency power module.

Key Features

• Input Voltage Range: The module operates over a wide input voltage range of 4.5V to 14V, making it versatile for various system designs and ensuring compatibility with different power sources.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 0.7V to 5.5V, allowing precise voltage regulation for different components and loads.
• High Efficiency: With an efficiency of up to 95%, the PTV05020WAH minimizes power loss, which is crucial for maintaining thermal performance and reliability in high-density applications.
• Power Density: The module boasts a power density of up to 260W/in³. This feature is particularly beneficial in applications where space is at a premium.
• Thermal Management: An integrated heat spreader provides excellent thermal performance, ensuring the module operates within its temperature range even under full load conditions.
• Output Current: It can deliver up to 6A of output current, which is sufficient for powering a wide range of electronic devices and components.

Advanced Technologies

Incorporating advanced technologies such as Auto-Track™ sequencing and Pre-Bias startup, the PTV05020WAH ensures smooth power sequencing and startup under pre-loaded conditions. This makes it easier to manage complex power systems and reduces design complexity.

Quality and Reliability

As with all Texas Instruments products, the PTV05020WAH is built with quality and reliability in mind. It undergoes rigorous testing and quality control measures to ensure it meets the high standards expected from a leading semiconductor manufacturer. The module's robust design and high-quality components contribute to its long operational life and consistent performance, even in challenging environments.

Applications

The versatility of the PTV05020WAH makes it ideal for a broad range of applications, including but not limited to:

• Networking equipment such as routers and switches
• Server and storage systems
• Industrial control systems
• Test and measurement equipment
