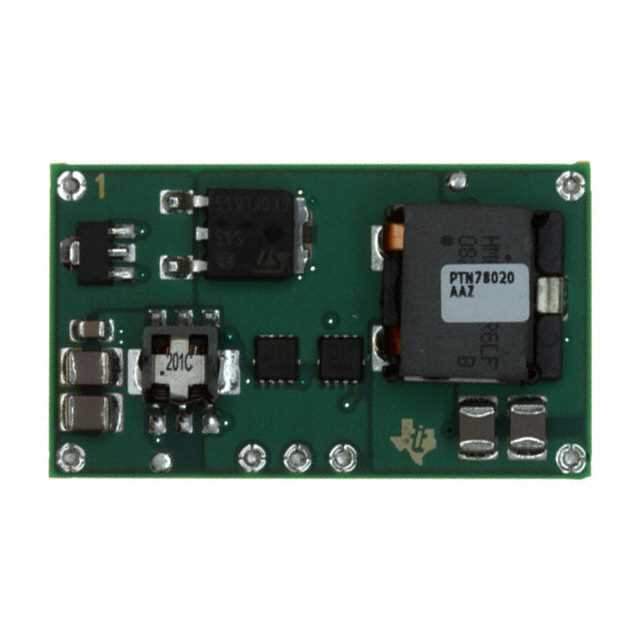

PTN78020AAZ Real Image
Same model may have multiple batches, images only for reference.

PTN78020AAZ

Part No PTN78020AAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW -15 TO -3V 4A SMD
Datasheet
PTN78020AAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTN78020A
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 29V
Voltage - Output 1 -15 ~ -3 V
Current - Output (Max) 4A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 7-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Power (Watts) - Max 25W
Win Source Part Number 004476-PTN78020AAZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTN78020AAZ CAD Model

Description

The PTN78020AAZ from Texas Instruments is a high-performance, integrated circuit power module that is designed to provide adjustable output voltage and high output current capability.

  • Output Voltage Range: Adjustable output voltage range from 1.2 V to 5.5 V
  • Output Current: Up to 6 A
  • Feature: Auto-Track sequencing feature
  • Operating Temperature Range: -40°C to 85°C
  • Safety Features: Over-temperature and under-voltage lockout protection
