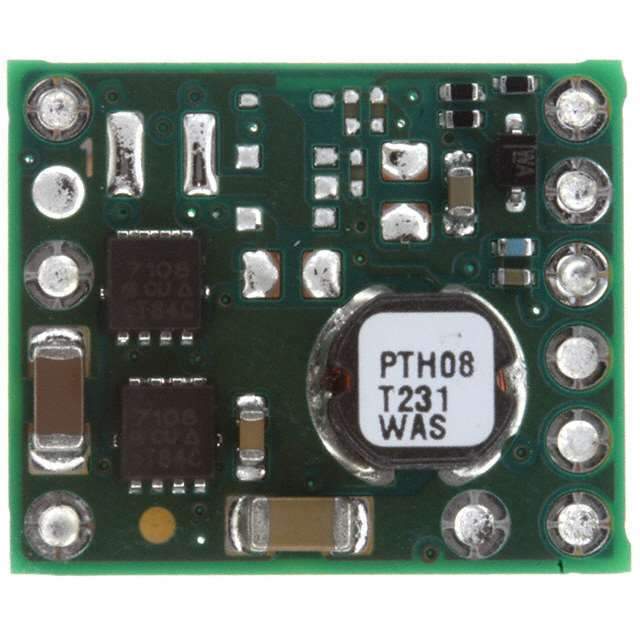

The PTH08T231WAS is a high-performance, adjustable non-isolated module with Power over Ethernet (PoE) capabilities, designed by the renowned electronics company Texas Instruments (TI). This advanced power solution is an integral component for a wide range of applications, including telecommunications, computing, and industrial systems.

Key Features

• High Efficiency: With an efficiency of up to 95%, this power module ensures that energy is used optimally, reducing heat generation and improving system reliability.
• Wide Output Voltage Range: The PTH08T231WAS offers an adjustable output voltage range from 0.69V to 5.5V, allowing for versatile use in various circuit configurations.
• Input Voltage Range: The module can handle an input voltage range from 4.5V to 14V, making it suitable for a broad spectrum of power sources.
• Output Current: It is capable of delivering up to 16A of output current, which is ideal for high-power applications.
• Integrated Inductor: The inclusion of an integrated inductor simplifies design and reduces external component count, which can help in minimizing the overall solution size.
• Thermal Performance: The PTH08T231WAS is designed with an excellent thermal performance in mind, featuring a temperature range of -40°C to 85°C.
• Protection Features: This module is equipped with a range of protection features, including over-temperature, over-voltage, under-voltage, and over-current protections, ensuring safe operation under various conditions.

Applications

The versatility of the PTH08T231WAS makes it suitable for a variety of applications, such as:

• Telecommunications equipment
• Networking equipment like routers and switches
• Industrial and test equipment
• High-density distributed power systems

Conclusion

The Texas Instruments PTH08T231WAS is a robust, efficient, and flexible power solution that can meet the demands of a wide range of high-performance applications. Its combination of efficiency, thermal performance, and integrated features make it an excellent choice for designers looking to streamline their power systems without compromising on quality or reliability.
