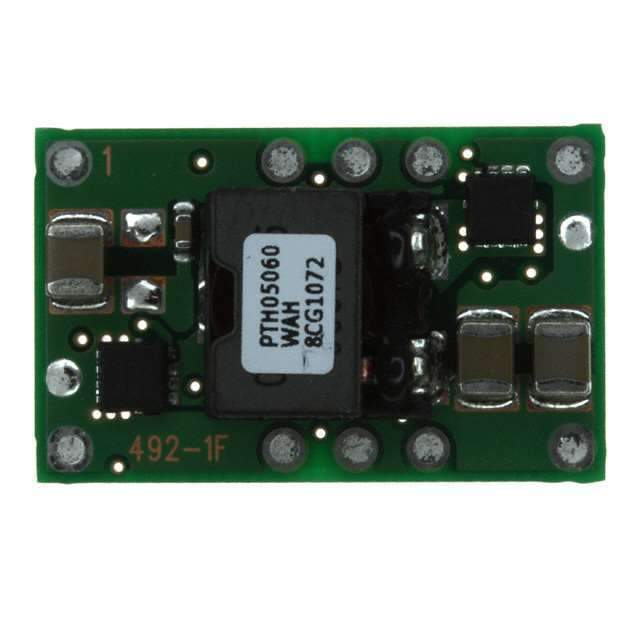

PTH05060WAH

Part No PTH05060WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .8-3.6V 10A T/H 10DIP / Module DC-DC 5VIN 1-OUT 0.8V to 3.6V 10A 36W 10-Pin Tray
Datasheet
PTH05060WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH05060W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Features UVLO
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 36W
Win Source Part Number 026948-PTH05060WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PTH05060W
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PTH05060WAH CAD Model

Description

The PTH05060WAH is a highly sophisticated, cutting-edge product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Auto-Track Sequencing Technology: Yes
  • Adjustable Output Voltages: 0.9V to 5.5V
  • Input Voltage Range: 4.5V to 5.5V
  • Output Current: Up to 10A
  • Over-Temperature Protection: Yes
  • Over-Current Protection: Yes
  • Efficiency: High
  • Operating Temperature Range: Wide
  • RoHS Compliant: Yes
