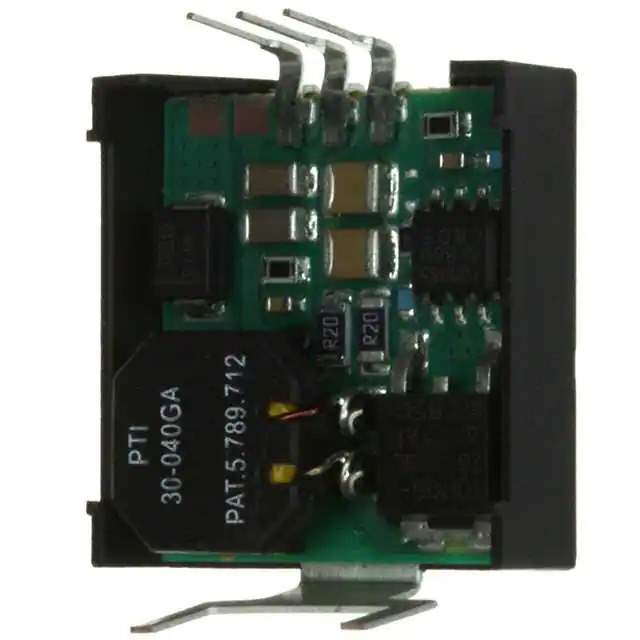

The Texas Instruments PT78NR252H is a highly reliable and efficient non-isolated power module designed to meet the rigorous demands of various electronic applications. This compact and easy-to-use module is part of the PT78NR series, which is known for its exceptional performance and durability.

Key Features

• Output Voltage: The PT78NR252H provides a fixed output voltage of 2.5V, which is ideal for low-voltage applications in digital circuits.
• High Efficiency: With its advanced design, this module offers high efficiency, which helps in reducing power loss and improving system reliability.
• Wide Input Voltage Range: It operates over a broad input voltage range, accommodating various input conditions and making it versatile for different power systems.
• Output Current: The module is capable of delivering an output current of up to 2A, making it suitable for powering a wide range of devices.
• Thermal Protection: Equipped with thermal shutdown protection, the PT78NR252H ensures safe operation by preventing overheating.
• Overcurrent Protection: The built-in overcurrent protection guards against excessive current draw, which could otherwise damage the module and the connected load.
• Compact Size: Its small form factor allows for easy integration into space-constrained applications without compromising on power or efficiency.
• Easy-to-Use: The module requires minimal external components, which simplifies the design and reduces time to market for products.

Applications

The PT78NR252H is suitable for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Industrial controls
• Networking systems
• Computing devices
• Portable electronics

Conclusion

The Texas Instruments PT78NR252H power module is a top choice for engineers and designers looking for a reliable, efficient, and compact power solution. Its robust feature set and ease of use make it an excellent option for powering a diverse array of electronic devices. Whether for prototyping or mass production, the PT78NR252H stands out as a versatile component that can streamline the power supply design process.
